Official name BEIJING 3B
Alternative name Beijing-3B
Cospar ID 2022-103A
Norad ID 53587
Launch date 2022-08-24
Launch site TSC
Launch vehicle CZ-2D (2)
Country/Organization China
Type application Earth observation
Operator 21AT (Twenty First Century Aerospace Technology Company Ltd)
RCS size LARGE
Decay date ON ORBIT
Period (min) 96.83
Inclination (deg) 97.87
Perigee (km) 596
Apogee (km) 617
Eccentricity 0.0173124484748557
Mean motion (revs. per day) 14.8714241454095
Semi-Major axis (km) 6984.635
Raan (deg) 186.5891
Arg of perigee (deg) 112.631
Shape Hex Cyl + 3 Pan
Mass (kg) 4000
Diameter (m) 2
Height (m) 3
Span (m^2) 8
Lifetime 8 years
Contractors CAST
Configuration CAST-3000E
Power Solar arrays, batteries

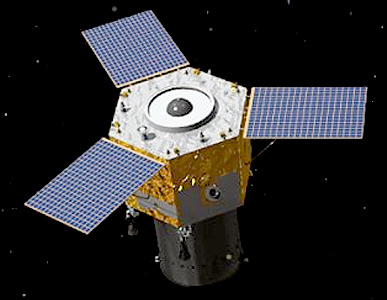

Beijing 3B is an agile remote sensing optical satellite developed by Aerospace Dongfanghong Satellite Co., Ltd. of the Fifth Academy of Aerospace Science and Technology Group for 21AT (Twenty First Century Aerospace Technology Company Ltd).

Using the new generation of agile satellite technology, the satellite can quickly obtain high-quality, high-resolution and high-precision ground images. It is built on the CAST3000E high-performance agile satellite platform, using ultra-high agility, ultra-high stability, ultra-high-precision technology, autonomous mission planning, in-orbit image processing and other technologies to realize intelligent systems and autonomous continuous imaging. Once the satellite is successfully launched, it can provide a large number of high-resolution remote sensing satellite data and information products for the global market, and provide spatial information support for land and resource management, resource studies agriculture, ecological environment monitoring and urban planning. comprehensive applications.

Beijing 3B is based on the Beijing 3A satellite, but carries a larger high resolution imager.

Satellite COSPAR Date LS Launch Vehicle Remarks
BEIJING 3B 2022-103A 2022-08-24 TSC CZ-2D (2)
