Jilin-1 Wideband-01 [Chang Guang Sat. Tech. Co.]
Official name JILIN-01 KUANFU 01
Alternative name Jilin-1 Kuanfu-1
Cospar ID 2020-003A
Norad ID 45016
Launch date 2020-01-15
Launch site TSC
Launch vehicle CZ-2D (2)
Country/Organization China
Type application Earth observation
Operator Chang Guang Satellite Technology Co.
RCS size LARGE
Decay date ON ORBIT
Period (min) 95.27
Inclination (deg) 97.54
Perigee (km) 528
Apogee (km) 535
Eccentricity 0.00658513640639699
Mean motion (revs. per day) 15.1149364962737
Semi-Major axis (km) 6909.635
Raan (deg) 221.7429
Arg of perigee (deg) 318.9734
Shape Box + 2 Pan
Mass (kg) 42
Height (m) 1.5
Width (m) 1
Depth (m) 1
Span (m^2) 1.5
Contractors Chang Guang Satellite Technology Co.
Power Solar array, batteries

Jilin 1 satellites are a series of Chinese commercial remote sensing satellite within the Jilin-1 constellation designed and owned by the Chang Guang Satellite Technology Co.

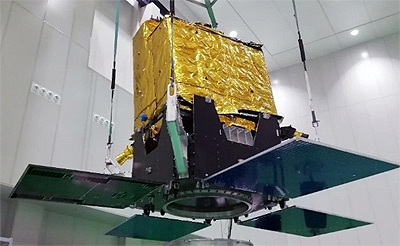

The Jilin-1 Kuanfu-01 or Jilin-1 Wideband-01 satellite features a high resolution and wide-field-of-view telephoto range imager. The push-broom imager with a multi-spectral resolution better than 4 m and a swath width greater than 136 km features high-speed storage and high-speed digital transmission systems.

The satellite was launched on 15 January 2020 on a CZ-2D (2) rocket.

Satellite COSPAR Date LS Launch Vehicle Remarks
JILIN-01 KUANFU 01 2020-003A 2020-01-15 TSC CZ-2D (2) with ÑuSat 7, ÑuSat 8, Tianqi 5
OBJECT A 2021-061A 2021-07-03 TSC CZ-2D (2) with Jilin-1 Gaofen-03D-01, Jilin-1 Gaofen-03D-02, Jilin-1 Gaofen-03D-03, Xingshidai 10
JILIN-01 KUANFU 01C 2022-048A 2022-05-05 TSC CZ-2D (2) with Jilin-1 Gaofen-03D-27, ..., 03D-33
