Official name PDP
Alternative name PDP
Cospar ID 1985-063B
Norad ID 15929
Launch date 1985-07-29
Launch site AFETR
Launch vehicle Shuttle
Country/Organization USA
Type application Technology
Operator NASA
RCS size UNKNOWN
Decay date 1985-08-06
Shape Cyl
Mass (kg) 158.57
Diameter (m) 1.07
Height (m) 0.66
Span (m^2) 1.07
Power Batteries

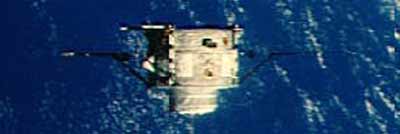

PDP (Plasma Diagnostics Package) was a small instrument package to measure the plasma environement of the Space Shuttle orbiter.

It made its first flight on STS-3, but was not used in the free-flight mode on this mission. ON STS-51F, it was first used while grappled by the Canadarm of the orbiter for measuring the close environment, and later deployed as free flyer for measurements in larger distances. After taking measurements, it was retrieved by the Shuttle's RMS.

Satellite COSPAR Date LS Launch Vehicle Remarks
PDP 1985-063B 1985-07-29 AFETR Shuttle with Challenger F8 (STS 51-F)
