Official name MSTI 1
Alternative name MSTI-1
Cospar ID 1992-078A
Norad ID 22229
Launch date 1992-11-21
Launch site AFWTR
Launch vehicle Scout-G1
Country/Organization USA
Type application Research
Operator SDIO
RCS size MEDIUM
Decay date 1993-07-18
Shape Box + 1 Pan
Mass (kg) 168.48
Height (m) 1.4
Width (m) 1
Depth (m) 1
Span (m^2) 2
Lifetime 6 days (design), 150 days reached
Contractors Spectrum Astro
Equipment ?
Propulsion ?
Configuration SA-200S
Power Solar cells, batteries

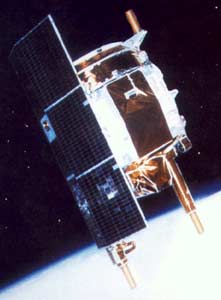

MSTI 1 (Miniature Sensor Technology Integration 1) had a four day mission to photograph infrared images of islands in the eastern Pacific Ocean. It was the first of a series of low-cost satellites which were intended to assist the Air Force's Strategic Defense Initiative Organization in its missile sensor technology. It was stabilized by a cold-gas reaction system. An FM transmitter relayed the infrared camera data to Air Force tracking stations.

Satellite COSPAR Date LS Launch Vehicle Remarks
MSTI 1 1992-078A 1992-11-21 AFWTR Scout-G1
