Radarsat 1 [Ball]
Official name RADARSAT
Alternative name Radarsat
Cospar ID 1995-059A
Norad ID 23710
Launch date 1995-11-04
Launch site AFWTR
Launch vehicle Delta-7920-10
Country/Organization Canada
Type application Earth observation (Radar)
Operator CSA
RCS size LARGE
Decay date ON ORBIT
Period (min) 100.59
Inclination (deg) 98.55
Perigee (km) 786
Apogee (km) 788
Eccentricity 0.00127064803049555
Mean motion (revs. per day) 14.3155383238891
Semi-Major axis (km) 7165.135
Raan (deg) 140.378
Arg of perigee (deg) 99.9693
Shape Box + 2 Pan
Mass (kg) 2724.48
Height (m) 4.2
Width (m) 2.8
Depth (m) 4.2
Span (m^2) 4.2
Lifetime 5 years (planned); 17 years (achieved)
Contractors Spar Aerospace (Prime), Ball Aerospace (Bus)
Equipment C-Band SAR
Propulsion ?
Configuration BCP-4000
Power 2 deployable solar arrays, batteries

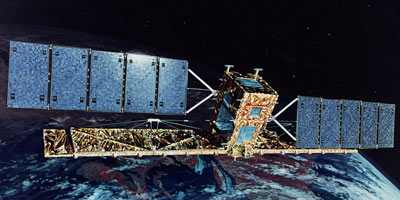

Radarsat 1, a Canadian-led international program and a major part of the overall Canadian Space Agency (CSA) program, is Canada's first remote-sensing satellite.

Since its 4 November 1995 launch into an 832-km sun-synchronous, dawn/dusk orbit, Radarsat has been delivering C-Band SAR imagery to the CSA and numerous commercial customers worldwide. The images are used for locating and identifying ice in the Arctic Ocean to aid in navigation; monitoring offshore oil and gas explosions and oil slicks; and acquiring remote sensing data for the management of agriculture and updating the Canadian geological map.

Ball Aerospace supported Spar Aerospace Limited, the prime contractor, by providing the spacecraft bus and assisting in the development of the mission ground station software and operations planning.

Radarsat 1 was disabled by an technological anomaly on 29 March 2013, which ended the mission after more than 17 years.

Satellite COSPAR Date LS Launch Vehicle Remarks
RADARSAT 1995-059A 1995-11-04 AFWTR Delta-7920-10 with Surfsat 1
