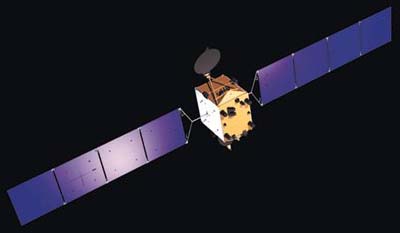

Yamal 101 [Gazkom]
Official name YAMAL 101
Alternative name Yamal 100 No. 1
Cospar ID 1999-047A
Norad ID 25896
Launch date 1999-09-06
Launch site TTMTR
Launch vehicle Proton-K Blok-DM-2M
Country/Organization Russia
Type application Communication
Operator Gazkom → Gazprom Space Systems
RCS size LARGE
Decay date ON ORBIT
Period (min) 1441.98
Inclination (deg) 14.49
Perigee (km) 35529
Apogee (km) 36275
Eccentricity 0.01038939334856
Mean motion (revs. per day) 0.99862688802896
Semi-Major axis (km) 42280.135
Raan (deg) 5.2561
Arg of perigee (deg) 45.9404
Shape Box + 1 Pan
Mass (kg) 1360
Height (m) 2
Width (m) 2
Depth (m) 2
Span (m^2) 2
Contractors RKK Energiya
Equipment 12 C-band transponders
Propulsion 8 × SPT-70 Stationary Plasma Thrusters
Configuration USP Bus
Power 2 deployable solar arrays, batteries

The Yamal-100 series of communications satellite was built by JSC Gascom jointly with RSC Energia under order of JSC Gazprom involving Russian cooperation and using high-quality RF equipment of the leading foreign manufacturers - Space Systems/Loral (transponders), NEC, Alenia Aerospazio, ComDev, Lockheed Martin.

Yamal-100 is the new generation Russian communications satellite. There were applied key state-of-art technologies in this satellite, including unpressurized modules, sandwich honeycomb constructions, contour antennas.

Both satellites were orbited by a single launch of a Proton-K Blok-DM-2M. Yamal 101 reportedly ran into problems after it was deployed.

Satellite COSPAR Date LS Launch Vehicle Remarks
YAMAL 101 1999-047A 1999-09-06 TTMTR Proton-K Blok-DM-2M with Yamal 102
YAMAL 102 1999-047B 1999-09-06 TTMTR Proton-K Blok-DM-2M with Yamal 101
