Official name HELIOS 1B
Alternative name Helios 1B
Cospar ID 1999-064A
Norad ID 25977
Launch date 1999-12-03
Launch site FRGUI
Launch vehicle Ariane-40 H10-3
Country/Organization France
Type application Reconnaissance, electro-optical
Operator DGA
RCS size LARGE
Decay date ON ORBIT
Period (min) 97.02
Inclination (deg) 98.25
Perigee (km) 614
Apogee (km) 618
Eccentricity 0.00324675324675325
Mean motion (revs. per day) 14.8423005565863
Semi-Major axis (km) 6994.135
Raan (deg) 1.5255
Arg of perigee (deg) 81.9499
Shape Box + 1 Pan
Mass (kg) 2544
Height (m) 3.5
Width (m) 2
Depth (m) 2
Span (m^2) 4
Lifetime 5 years
Contractors Aérospatiale, Matra Marconi
Equipment ?
Propulsion ?
Configuration SPOT Mk.2
Power Deployable solar array, batteries

The Helios program is Europe's military optical reconnaissance system consisting of both a space and a ground segment, which commenced service in 1995, jointly funded by the French, Italian and Spanish governments. The Helios I optical observation satellites, launched in July 1995 and December 1999 respectively, can acquire high resolution images of any point on the globe, with daily revisit capability.

The French Ministry of Defence procurement agency DGA runs the program, retains direct control over the management of the ground segment, and delegates the space segment responsibility to the French space agency CNES. In a multinational cooperation, also Belgium, Spain, Italy and Germany have access to the imagery in excange for access to COSMOSkyMed and SAR-Lupe radar imagery.

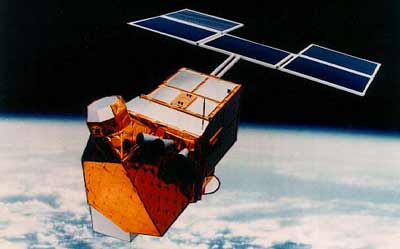

The Helios-1 satellites were based on the SPOT Mk.2 bus, based on the civilian SPOT series. They carried an optical instrument with a ground resolution of 1 m and a swath width of 10 km.

Helios-1A operated until January 2012 and was intentionally de-orbited in February 2012.

Helios-1B had suffered a breakdown of its power supply system in October 2004 and could no longer perform any work after operating for just under its 5-year nominal life expectancy.

Satellite COSPAR Date LS Launch Vehicle Remarks
HELIOS 1A 1995-033A 1995-07-07 FRGUI Ariane-40 H10-3 with Cerise, UPM-LBSat
HELIOS 1B 1999-064A 1999-12-03 FRGUI Ariane-40 H10-3 with Clementine
