Official name LRE
Alternative name LRE
Cospar ID 2001-038A
Norad ID 26898
Launch date 2001-08-29
Launch site TNSTA
Launch vehicle H-2A-202
Country/Organization Japan
Type application Geodesy
Operator NASDA
RCS size MEDIUM
Decay date ON ORBIT
Period (min) 547.88
Inclination (deg) 28.45
Perigee (km) 212
Apogee (km) 31391
Eccentricity 0.986583552194412
Mean motion (revs. per day) 2.62831276921954
Semi-Major axis (km) 22179.635
Raan (deg) 274.5133
Arg of perigee (deg) 9.9052
Shape Sphere
Mass (kg) 86
Height (m) 0.5
Width (m) 0.5
Depth (m) 0.5
Span (m^2) 0.5
Contractors NASDA
Equipment Retrorelector Array and plate mirrors
Propulsion None
Configuration 47 cm Sphere
Power None

Initially, LRE (Laser Ranging Equipment) was used to evaluate the accuracy of the initial trajectory determination of the H-2A-202 launch vehicle. Subsequently, the satellite was used to verify SLR station performance, as a target for wide dynamic range of transmitting/receiving tests up to geosynchronous orbit for optical communication and SLR, and to evaluate the air drag model using SLR data.

Retroreflector Array Characteristics:

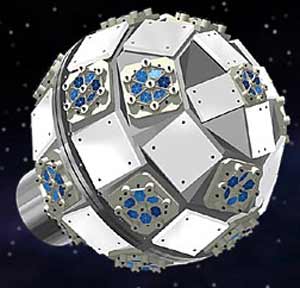

The array consists of 126 cube corners and 24 plate mirrors. There are two kinds of cube corners (fused silica and BK7). Approximate center of mass correction is 210 mm.

Satellite COSPAR Date LS Launch Vehicle Remarks
LRE 2001-038A 2001-08-29 TNSTA H-2A-202 with VEP 2
