Official name H-2A R/B
Alternative name H-II LE-5B (H-IIA 202)
Cospar ID 2001-038B
Norad ID 26899
Launch date 2001-08-29
Launch site TNSTA
Launch vehicle H-2A-202
Country/Organization Japan
Type application Technology
Operator NASDA
RCS size LARGE
Decay date ON ORBIT
Period (min) 555.95
Inclination (deg) 27.99
Perigee (km) 272
Apogee (km) 31765
Eccentricity 0.983019633548709
Mean motion (revs. per day) 2.59016098570015
Semi-Major axis (km) 22396.635
Raan (deg) 100.4535
Arg of perigee (deg) 92.7964
Shape Cyl
Mass (kg) 4000
Diameter (m) 4
Height (m) 9.2
Span (m^2) 9.2
Contractors ?
Equipment ?
Propulsion ?
Power Batteries

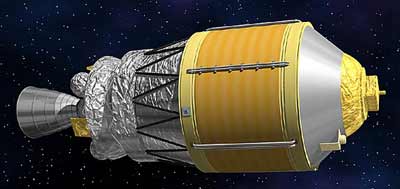

The VEP 2 (Vehicle Evaluation Payload) was a Japanese spacecraft that was launched by the maiden H-2A-202 rocket from the Tanegashima launch site.

It provided a ranging function as well as functions to measure the acceleration and deformation, in order to confirm the accuracy of the H-2A-202 rocket orbit injection and understand the environment of the payload equipment. It remained intentionally attached to the second stage of the H-2 launch vehicle. It also carried the LRE sub satellite, which was deployed in orbit.

Satellite COSPAR Date LS Launch Vehicle Remarks
H-2A R/B 2001-038B 2001-08-29 TNSTA H-2A-202 with LRE
