Gruzomaket [NPO Mashinostroyeniya]
Official name GRUZOMAKET
Alternative name Gruzomaket
Cospar ID 2003-055A
Norad ID 28098
Launch date 2003-12-05
Launch site TTMTR
Launch vehicle Strela
Country/Organization Russia
Type application Vehicle Evaluation
Operator NPO Mashinostroyeniya
RCS size MEDIUM
Decay date 2015-12-15
Shape Cyl + Box
Mass (kg) 978
Height (m) 2.5
Width (m) 0.8
Depth (m) 2.5
Span (m^2) 2.5
Contractors NPO Mashinostroyeniya
Propulsion None
Configuration Kondor-E structure

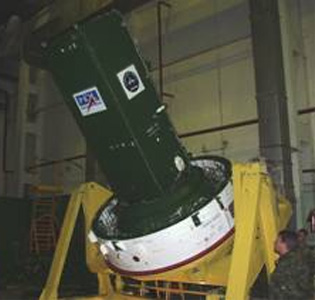

The Gruzomaket (or Kondor-E-GVM) was a vehicle evaluation payload representing a dynamic model of the Kondor / Kondor-E Earth observation satellite.

The first demonstration launch of the Strela launch vehicle from the Baikonur launch site was performed on 5 December 2003. The weight S/C dummy (978 kg) was injected with the help of the Strela launch vehicle at the orbit with inclination of 67.067 deg, apogee height 458.8 km, perigee height 458 km. The altitude error was not more than 1% (for such altitude it is about 5 km) and in inclination the error was not more than 0.05 deg, this value meets operational requirements.

Satellite COSPAR Date LS Launch Vehicle Remarks
GRUZOMAKET 2003-055A 2003-12-05 TTMTR Strela
