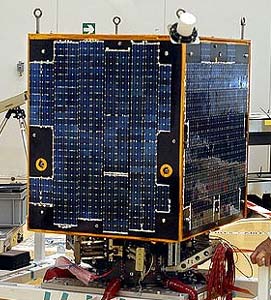

The Sloshsat-FLEVO (Sloshsat Facility for Liquid Experimentation and Verification in
Orbit) is a satellite to investigate the behavior of liquids in weightlessness. The
payload of the satellite consists of an experiment tank with elaborate instrumentation.
The tank shape is a circular cylinder with hemispherical ends and no internal structures.
The volume of the tank is 87 liters. The tank will be partially filled with 33.5 liters of
water. With a sensor system, the liquid height at the tank wall will be measured at 270
locations. Additional sensors are provided at a few locations to measure liquid height
with a better resolution, liquid velocity at the wall, pressures and temperatures. The
mass of the dry satellite is approximately 70 kg. The fluid/rigid mass ratio is about 0.5.
The objectives of the Sloshsat-FLEVO experiment are to:
- Obtain flight data to verify the adequacy of existing analytical fluid dynamics models, and indicate where improvement is needed
- Obtain flight data to verify adequacy of existing computational fluid dynamics software
numerical models, and indicate where improvement is needed.
- Characterize the dynamic interaction between liquid motions and spacecraft
- Provide understanding of the motions of liquid with a free surface in a low gravity
environment
- Generate phenomenological information on less well organized flow patterns as a basis
for further mathematical modeling
- Provide relevant information for the design of liquid management techniques in
micro-gravity
- Obtain data on diagnostic instruments performances.
- and to develop and qualify a low-cost small spacecraft (S/C)-Bus
Sloshsat-FLEVO was to be launched on a Shuttle, as it was to use the Shuttle as a data relay. Only a non ISS flight was acceptable due to security reasons. But as no Shuttle flight opportunities were available
due to the Columbia disaster, it has been modified for direct data transmission to enable
launch on an Ariane-5ECA qualification
flight. It will be released from top of the MaqSat B2 dummy
payload.
