Official name KAZSAT 2
Alternative name Kazsat-2
Cospar ID 2011-035B
Norad ID 37749
Launch date 2011-07-15
Launch site TTMTR
Launch vehicle Proton-M Briz-M (Ph.3)
Country/Organization Kazakhstan
Type application Communication
Operator JSC KazSat
RCS size LARGE
Decay date ON ORBIT
Period (min) 1436.08
Inclination (deg) 0.04
Perigee (km) 35786
Apogee (km) 35787
Eccentricity 1.39717491232727E-05
Mean motion (revs. per day) 1.00272965294413
Semi-Major axis (km) 42164.635
Raan (deg) 263.1419
Arg of perigee (deg) 170.0551
Shape Box + 2 Pan
Mass (kg) 1272
Height (m) 3
Width (m) 2
Depth (m) 2
Span (m^2) 7
Lifetime 12 years
Contractors Khrunichev
Equipment 16 (+4) Ku-band transponders
Propulsion 8 × SPT-70 Stationary Plasma Thrusters; K10K-engine
Configuration Yakhta (mod.)
Power 2 deployable solar arrays, batteries

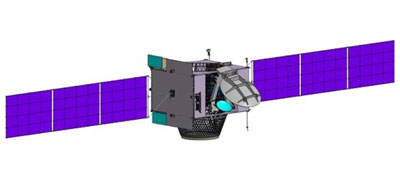

KazSat 2 is a kazakh communications satellite, features 12 Ku-band transponders for fixed communications and 4 Ku-band transponders for TV-transmissions and is intended for telecast, fixed satellite communication and data transmission for Kazakhstan and central asia.

It was ordered in 2006 for a launch in 2009. The launch was delayed to 2011.

The satellite was originally to supplement the KazSat 1 satellite, but serves now to replace Kazsat 1 due to the complete loss of the first satellite.

Satellite COSPAR Date LS Launch Vehicle Remarks
KAZSAT 2 2011-035B 2011-07-15 TTMTR Proton-M Briz-M (Ph.3) with SES 3
