LAPAN A2 [LAPAN]
Official name LAPAN A2
Alternative name LAPAN-A2/ORARI
Cospar ID 2015-052B
Norad ID 40931
Launch date 2015-09-28
Launch site SRI
Launch vehicle PSLV-XL
Country/Organization Indonesia
Type application Earth observation, amateur communications, traffic monitoring
Operator LAPAN
RCS size MEDIUM
Decay date ON ORBIT
Period (min) 97.44
Inclination (deg) 6
Perigee (km) 627
Apogee (km) 646
Eccentricity 0.0149253731343284
Mean motion (revs. per day) 14.7783251231527
Semi-Major axis (km) 7014.635
Raan (deg) 303.0442
Arg of perigee (deg) 190.3596
Shape Box
Mass (kg) 76
Height (m) 0.8
Width (m) 0.6
Depth (m) 0.8
Span (m^2) 0.8
Contractors LAPAN
Equipment Camera, AIS-receiver
Propulsion None
Power Solar cells, batteries

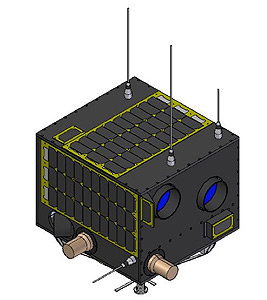

LAPAN A2, also known as LAPAN-ORARI, is an indonesian microsatellite based on the LAPAN-Tubsat. It carries an AIS (Automatic Identification System) to identify the ships in the waters of Indonesia and a video camera with a range three times wider than the Lapan-Tubsat. It also carries a payload for disaster management by amateur radio communication.

The satellite structure and many subsystems are the same as in its sister satellite LAPAN A3.

The Earth observation payload of LAPAN A2 consists of a Video camera (Kappa PAL) for 80 km width ground coverage and a Video camera (Kappa HDTV for high resolution satellite color video observation with a ground resolution of 6 m and a ground coverage of 11 × 6 km per video frame.

LAPAN-A2 carries a payload of voice repeaters and an APRS Repeater for communications of the Organisation for Amateur Radio Indonesia (ORARI) during a disaster. After launch, it received the designation IO 86 or Indonesia-OSCAR 86.

Satellite COSPAR Date LS Launch Vehicle Remarks
LAPAN A2 2015-052B 2015-09-28 SRI PSLV-XL with AstroSat, exactView 9, Lemur-2 1, Lemur-2 2, Lemur-2 3, Lemur-2 4
