Official name QSS
Alternative name Mozi hao
Cospar ID 2016-051A
Norad ID 41731
Launch date 2016-08-15
Launch site JSC
Launch vehicle CZ-2D (2)
Country/Organization China
Type application Science
Operator Chinese Academy of Sciences (CAS), Institute for Quantum Optics and Quantum Information (IQOQI)
RCS size LARGE
Decay date ON ORBIT
Period (min) 93.7
Inclination (deg) 97.31
Perigee (km) 448
Apogee (km) 463
Eccentricity 0.0164654226125137
Mean motion (revs. per day) 15.3681963713981
Semi-Major axis (km) 6833.635
Raan (deg) 39.0734
Arg of perigee (deg) 28.6095
Shape Box + 2 Pan
Mass (kg) 640
Height (m) 2
Width (m) 1.5
Depth (m) 1.5
Span (m^2) 4
Lifetime 2 years
Contractors CAS (prime)
Propulsion ?
Power 2 deployable solar arrays, batteries

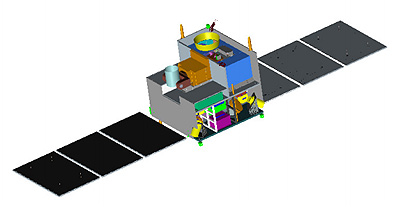

QSS (Quantum Science Satellite) or Mozi or Micius, also known as QUESS (Quantum Experiments at Space Scale), is a Chinese minisatellite to establish a space platform with long-distance satellite and ground quantum channel, and to carry out a series of tests about fundamental quantum principles and protocols in space-based large scale. QSS development was initiated by CAS in partnership with the Institute for Quantum Optics and Quantum Information (IQOQI), Vienna, of the Austrian Academy of Sciences in 2011.

The scientific goals are to implement a series of science missions between Quantum Science Satellite and quantum communication ground stations. The major tasks are as follows:

  • Quantum Key Distribution from Satellite to Ground
    To set up an ultra-long-range quantum channel between ground and satellite with the assistance of high-precision acquisition, tracking and pointing system, implement a quantum key distribution between the satellite and the ground stations, and carry out unconditional secure quantum communication experiments.
  • Global Scale Quantum Communication Network
    To set up a real wide-area network for quantum communication using the satellite repeater and two arbitrary quantum ground stations and their auxiliary local-area fiber quantum networks.
  • Quantum Entanglement Distribution from Satellite to two ground stations
    Distribution of quantum entangled photons from the satellite to two distant ground stations whose distance is larger than one thousand kilometers; test of the entanglement properties at a large scale and nonlocality of quantum mechanics.
  • Quantum Teleportation from Ground to Satellite
    as a totally new way of communication, quantum teleportation is the fundamental process of quantum networks and quantum computing. A high quality quantum entanglement source on the ground will be built to achieve ground-to-satellite teleportation experiments based on photon entanglement.

QSS was launched in Augus 2016 on a CZ-2D (2) rocket.

Satellite COSPAR Date LS Launch Vehicle Remarks
QSS 2016-051A 2016-08-15 JSC CZ-2D (2) with Lixing 1, 3Cat 2
