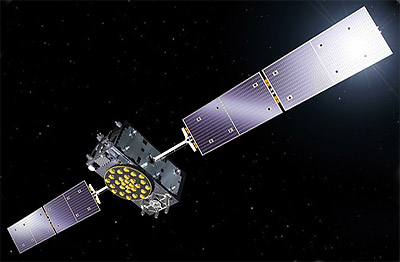

Official name | GALILEO 16 (26C) |
Alternative name | Galileo FOC FM12 |
Cospar ID | 2016-069B |
Norad ID | 41860 |
Launch date | 2016-11-17 |
Launch site | FRGUI |
Launch vehicle | Ariane-5ES |
Country/Organization | Europe |
Type application | Navigation |
Operator | ESA |
RCS size | LARGE |
Decay date | ON ORBIT |
Period (min) | 844.7 |
Inclination (deg) | 55.07 |
Perigee (km) | 23209 |
Apogee (km) | 23235 |
Eccentricity | 0.00055981396951167 |
Mean motion (revs. per day) | 1.70474724754351 |
Semi-Major axis (km) | 29600.135 |
Raan (deg) | 122.5552 |
Arg of perigee (deg) | 315.3013 |
Shape | Box + 2 Pan |
Mass (kg) | 733 |
Height (m) | 2.53 |
Width (m) | 1.2 |
Depth (m) | 1.1 |
Span (m^2) | 14.7098 |
Lifetime | +12 years |
Contractors | OHB-System GmbH (Bus, prime), SSTL (payload) |
Equipment | Galileo Navigation payload, MEO SAR |
Propulsion | 8 × 1 N MO NARC-1 hydrazine thrusters |
Configuration | SmartMEO |
Power | 2 deployable solar arrays, batteries |
Satellite | COSPAR | Date | LS | Launch Vehicle | Remarks | |
---|---|---|---|---|---|---|
GALILEO 5 (261) | 2014-050A | 2014-08-22 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 6 | |
GALILEO 6 (262) | 2014-050B | 2014-08-22 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 5 | |
GALILEO 7 (263) | 2015-017A | 2015-03-27 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 8 | |
GALILEO 8 (264) | 2015-017B | 2015-03-27 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 7 | |
GALILEO 9 (205) | 2015-045A | 2015-09-11 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 10 | |
GALILEO 10 (206) | 2015-045B | 2015-09-11 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 9 | |
GALILEO 12 (269) | 2015-079A | 2015-12-17 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 11 | |
GALILEO 11 (268) | 2015-079B | 2015-12-17 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 12 | |
GALILEO 14 (26B) | 2016-030A | 2016-05-24 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 14 | |
GALILEO 13 (26A) | 2016-030B | 2016-05-24 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 13 | |
GALILEO 15 (267) | 2016-069A | 2016-11-17 | FRGUI | Ariane-5ES | with Galileo 16, Galileo 17, Galileo 18 | |
GALILEO 16 (26C) | 2016-069B | 2016-11-17 | FRGUI | Ariane-5ES | with Galileo 15, Galileo 17, Galileo 18 | |
GALILEO 17 (26D) | 2016-069C | 2016-11-17 | FRGUI | Ariane-5ES | with Galileo 15, Galileo 16, Galileo 18 | |
GALILEO 18 (26E) | 2016-069D | 2016-11-17 | FRGUI | Ariane-5ES | with Galileo 15, Galileo 16, Galileo 17 | |
GALILEO 19 (2C5) | 2017-079A | 2017-12-12 | FRGUI | Ariane-5ES | with Galileo 20, Galileo 21, Galileo 22 | |
GALILEO 20 (2C6) | 2017-079B | 2017-12-12 | FRGUI | Ariane-5ES | with Galileo 19, Galileo 21, Galileo 22 | |
GALILEO 21 (2C7) | 2017-079C | 2017-12-12 | FRGUI | Ariane-5ES | with Galileo 19, Galileo 20, Galileo 22 | |
GALILEO 22 (2C8) | 2017-079D | 2017-12-12 | FRGUI | Ariane-5ES | with Galileo 19, Galileo 20, Galileo 21 | |
GALILEO 25 (2C1) | 2018-060A | 2018-07-25 | FRGUI | Ariane-5ES | with Galileo 23, Galileo 24, Galileo 26 | |
GALILEO 26 (2C2) | 2018-060B | 2018-07-25 | FRGUI | Ariane-5ES | with Galileo 23, Galileo 24, Galileo 25 | |
GALILEO 23 (2C9) | 2018-060C | 2018-07-25 | FRGUI | Ariane-5ES | with Galileo 24, Galileo 25, Galileo 26 | |
GALILEO 24 (2C0) | 2018-060D | 2018-07-25 | FRGUI | Ariane-5ES | with Galileo 23, Galileo 25, Galileo 26 | |
GALILEO 27 (223) | 2021-116A | 2021-12-05 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 28 | |
GALILEO 28 (224) | 2021-116B | 2021-12-05 | FRGUI | Soyuz-ST-B Fregat-MT | with Galileo 27 |
