Official name QUANTUTONG 1
Alternative name Quan tu tong 1
Cospar ID 2018-008D
Norad ID 43158
Launch date 2018-01-19
Launch site JSC
Launch vehicle CZ-11
Country/Organization Canada
Type application Communication M2M/IoT
Operator Kepler Communications
RCS size MEDIUM
Decay date ON ORBIT
Period (min) 93.35
Inclination (deg) 97.26
Perigee (km) 433
Apogee (km) 443
Eccentricity 0.0114155251141553
Mean motion (revs. per day) 15.4258168184253
Semi-Major axis (km) 6816.135
Raan (deg) 179.9811
Arg of perigee (deg) 208.0069
Shape Box
Mass (kg) 8
Height (m) 0.3
Width (m) 0.2
Depth (m) 0.2
Span (m^2) 0.3
Contractors Clyde Space
Equipment SDR
Propulsion None
Configuration CubeSat (3U)
Power Solar cells, batteries

Kepler Communications, a small satellite startup, is designing a constellation of CubeSats for Internet-of-Things (IoT), machine-to-machine (M2M) and inter-satellite communications services.

Kepler?s goals are to provide a vastly improved IoT backhaul for customers on the ground, as well as real time access to satellites in the same orbit. In an interview with Via Satellite, Co-Founder and CTO Wen Cheng Chong said the fresh capital has given the company the means to start building out its system.

Kepler is starting with two 3U CubeSat operating in Ku-band and providing store and forward services, with the first to be launched in late 2017. The satellites ares named KIPP and CASE in honor of fictional robots from the movie 'Interstellar'.

The constellation would then expand to an initial size of 10 to 15 satellites in a polar orbit. With this fleet, the company would provide low data rate communications for various user terminals to the satellite, and a very large pipe to the gateway when over ground stations. For a late phase, the constellation might be increased to 120 satellites.

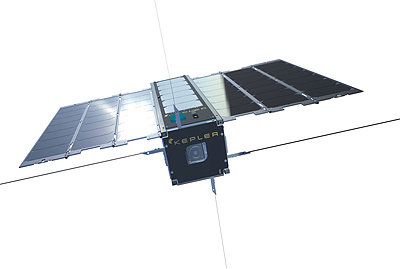

The 3U CubeSat feature deployable solar arrays, software defined radios (SDR) and high gain antennas. Clyde Space has been contracted to build the satellites.

Satellite COSPAR Date LS Launch Vehicle Remarks
QUANTUTONG 1 2018-008D 2018-01-19 JSC CZ-11 with Jilin-1 Shipin-07, Jilin-1 Shipin-08, TY 2, TY 6, Zhou Enlai
KEPLER-1 (CASE) 2018-096L 2018-11-29 SRI PSLV-CA with HySIS, BlackSky 1, Flock-3r 1, ..., 16, Lemur-2 84, ..., 87, CICERO 8, Hiber 1, HSAT 1, Centauri 2, FACSAT 1, InnoSat 2, Reaktor Hello World, 3Cat 1
