HSAT 1 [Harris]
Official name HSAT
Alternative name HSAT-1
Cospar ID 2018-096B
Norad ID 43720
Launch date 2018-11-29
Launch site SRI
Launch vehicle PSLV-CA
Country/Organization USA
Type application Experimental
Operator Harris
RCS size MEDIUM
Decay date 2022-11-01
Shape Box + 2 Pan + 1 Ant
Mass (kg) 13.2
Height (m) 0.3
Width (m) 0.1
Depth (m) 0.1
Span (m^2) 1.3
Contractors Harris; Blue Canyon Technologies (bus)
Propulsion None
Configuration CubeSat (6U)
Power Solar cells, batteries

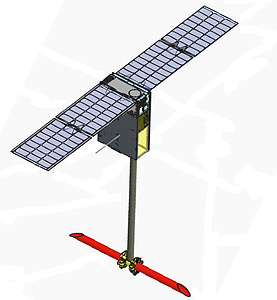

HSAT 1 is a 6U CubeSat mission developed as an Internal Research and Design (IR&D) testbed funded by Harris Corporation that will test and characterize the performance of a Harris payload in Low Earth Orbit (LEO), as well as demonstrate and characterize the performance of a deployable antenna design.

HSAT 1 carries a camera for taking images of the deployable appendages on the satellite as well as panchromatic images of the Earth with a 698 meter resolution. The satellite will operate in a circular, sunsynchronous, low earth orbit (approximately 500 km).

HSAT 1 was launched in late 2018 on an Indian PSLV as a copassenger.

Satellite COSPAR Date LS Launch Vehicle Remarks
HSAT 2018-096B 2018-11-29 SRI PSLV-CA with HySIS, BlackSky 1, Flock-3r 1, ..., 16, Lemur-2 84, ..., 87, CICERO 8, Hiber 1, CASE, Centauri 2, FACSAT 1, InnoSat 2, Reaktor Hello World, 3Cat 1
