CAS500 1 [KARI]
Official name CAS500-1
Alternative name CAS500-1
Cospar ID 2021-022A
Norad ID 47932
Launch date 2021-03-22
Launch site TTMTR
Launch vehicle Soyuz-2-1a Fregat
Country/Organization South Korea
Type application Earth observation
Operator KARI
RCS size LARGE
Decay date ON ORBIT
Period (min) 94.72
Inclination (deg) 97.38
Perigee (km) 502
Apogee (km) 508
Eccentricity 0.00594059405940594
Mean motion (revs. per day) 15.2027027027027
Semi-Major axis (km) 6883.135
Raan (deg) 29.8656
Arg of perigee (deg) 84.3372
Shape Box + 4 Pan
Mass (kg) 500
Height (m) 2.9
Width (m) 1.9
Depth (m) 1.9
Span (m^2) 6
Lifetime 4 years
Contractors KARI
Equipment AEISS-C
Power 4 deployable fixed solar arrays, batteries

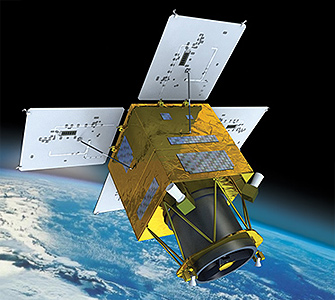

The South Korean CAS500-1 and CAS500-2 (Compact Advanced Satellite 500) space vehicles are Earth-observation models that will image the Earth in panchromatic and multispectral modes using the AEISS-C (Advanced Earth Imaging Sensor System) payload.

The CAS500 satellites will feature the AEISS-C (Advanced Earth Imaging Sensor System) imaging system with a ground resolution of 0.5 m in panchromatic mode and 2 m in color mode.

The satellites will be launched 2020 on two Soyuz-2-1a Fregat rockets from Baikonur.

The second satellite was to be launched in 2022 also on a Russian Soyuz-2-1a Fregat rocket. Due to sactions because of the Russian invasion of Ukraine, the launch on a Russian launch vehicle was cancelled.

Satellite COSPAR Date LS Launch Vehicle Remarks
CAS500-1 2021-022A 2021-03-22 TTMTR Soyuz-2-1a Fregat with ELSA-d Servicer, ELSA-d Client, GRUS 1B, ..., 1E, Najm 1, DMSat 1, UniSat 7, BCCSAT 1, FEES, DIY 1, SMOG 1, STECCO, SAMSON 1, 2, 3, Kepler 6, 7, NanoSatC-Br 2, KMSL, CANYVAL-C 1, 2, BeeSat 5, ..., 8, Hiber 3, CubeSX-HSE, CubeSX-Sirius-HSE, Orbicraft-Zorkiy, WildTrackCube-SIMBA, GRBAlpha, 3B5GSAT, LacunaSat 2b, ChallengeOne, KSU-Cubesat
