Official name CUTE-LASP
Alternative name CUTE
Cospar ID 2021-088D
Norad ID 49263
Launch date 2021-09-27
Launch site AFWTR
Launch vehicle Atlas-5(401)
Country/Organization USA
Type application Science, astronomy, UV
Operator University of Colorado
RCS size MEDIUM
Decay date ON ORBIT
Period (min) 94.87
Inclination (deg) 97.5
Perigee (km) 502
Apogee (km) 522
Eccentricity 0.01953125
Mean motion (revs. per day) 15.1786655423211
Semi-Major axis (km) 6890.135
Raan (deg) 195.4419
Arg of perigee (deg) 213.1076
Shape Box + 2 Pan
Mass (kg) 10
Height (m) 0.3
Width (m) 0.2
Depth (m) 0.2
Span (m^2) 1
Contractors University of Colorado (prime); Blue Canyon Technologies (bus)
Configuration CubeSat (6U)
Power Solar cells, batteries

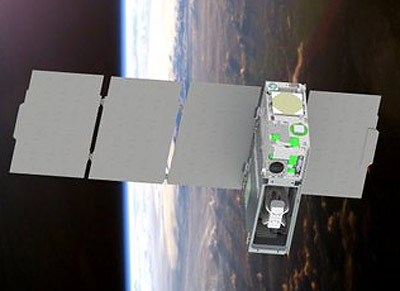

The CUTE (Colorado Ultraviolet Transit Experiment) is a 6U CubeSat mission by the University of Colorado, Boulder, is a scientific investigation to study the atmospheric properties of planets orbiting other stars.

The Colorado Ultraviolet Transit Experiment (CUTE) is a 4- year, NASA-funded project to design, build, integrate, test, and operate a 6-unit CubeSat (30 cm x 20 cm x 10 cm). CUTE will have a 1-year mission life time and will launch in 2020 and use near-ultraviolet (NUV) transmission spectroscopy from 255 to 330 nanometers (nm) to characterize the composition and mass-loss rates of exoplanet atmospheres. CUTE measures how the NUV light from the host star is changed as the exoplanet transits in front of the star and passes through the planet?s atmospheres. CUTE?s spectrally resolved lightcurve will provide constraints on the composition and escape rates of these atmospheres, and may provide the first concrete evidence for magnetic fields on extrasolar planets.

The keys to unlocking the diagnostic potential of these systems are spectral coverage in the appropriate bandpass and the ability to follow the systems for several orbital periods. CUTE is designed to provide exactly that ? low resolution spectroscopy of critical atmospheric tracers (Fe II, Mg II, Mg I, OH) that are inaccessible from the ground, and a dedicated mission architecture that enables the survey required to characterize atmospheric structure and variability on these worlds.

CUTE is being constructed at the University of Colorado, Boulder and the Laboratory for Atmospheric and Space Physics (LASP). Dr. Kevin France is the Principle Investigator of the CUTE mission at LASP.

It was selected in 2018 by NASA's CubeSat Launch Initiative (CSLI) to be launched as part of the ELaNa program.

Satellite COSPAR Date LS Launch Vehicle Remarks
CUTE-LASP 2021-088D 2021-09-27 AFWTR Atlas-5(401) with Landsat 9, CuPID, Cesium Satellite 1, 2
