PAC 1 [NASA]
Official name PAC 1
Alternative name PAC 1
Cospar ID 1969-068B
Norad ID 4066
Launch date 1969-08-09
Launch site AFETR
Launch vehicle Delta-N
Country/Organization USA
Type application Technology
Operator NASA Goddard Space Flight Center
RCS size LARGE
Decay date 1977-04-28
Shape Cyl
Mass (kg) 118.93
Diameter (m) 1.5
Height (m) 0.6
Span (m^2) 1.5
Contractors NASA Goddard Space Flight Center
Propulsion None in orbit
Configuration Experiments on Delta second stage
Power Solar cells, batteries

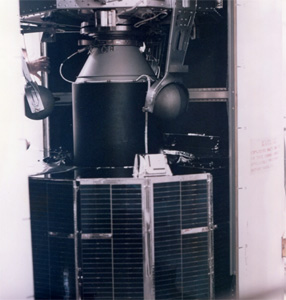

The PAC 1 (Package Attitude Control) system was carried piggyback on a Delta-N second stage during the August 9, 1969, launch of the OSO 6 satellite. It remained intentionally attached to the Delta stage.

PAC was inserted into orbit (547 × 483 km) to flight test a long-life, low-power, three-axis, earth-stabilized control system for the Delta second stage and to demonstrate the feasibility of using this stage as a platform for experimental payloads.

Satellite COSPAR Date LS Launch Vehicle Remarks
PAC 1 1969-068B 1969-08-09 AFETR Delta-N with OSO 6
