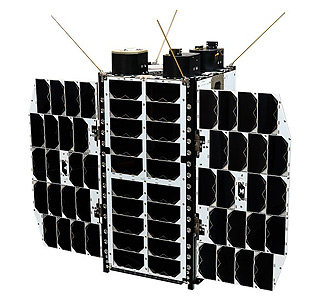

ETV A1 [NanoAvionics]
Official name ETV-A1
Alternative name ETV-A1
Cospar ID 2022-002CE
Norad ID 51060
Launch date 2022-01-13
Launch site AFETR
Launch vehicle Falcon-9 v1.2 (Block 5)
Country/Organization UK
Type application Earth observation
Operator Sen
RCS size MEDIUM
Decay date ON ORBIT
Period (min) 94.71
Inclination (deg) 97.39
Perigee (km) 499
Apogee (km) 510
Eccentricity 0.0109018830525273
Mean motion (revs. per day) 15.2043078872347
Semi-Major axis (km) 6882.635
Raan (deg) 187.1107
Arg of perigee (deg) 213.5011
Shape Box + 2 Pan
Mass (kg) 20
Height (m) 0.4
Width (m) 0.2
Depth (m) 0.2
Span (m^2) 0.4
Contractors NanoAvionics
Equipment Video imaging telescope payload
Configuration CubeSat (16U)
Power Solar cells, batteries

ETV, formerly known as EarthTV, is a constellation of video earth observing nanosatellites owned by the British company Sen.

Sen is developing its ETV constellation of nano-satellites to stream real-time and timely videos from space. The service, which will include a freely accessible app for individuals, will be used for monitoring environmental events and natural disasters such as wild fires, floods and storms, as well as monitoring climate change and movement of large groups of people.

Each satellite will be equipped with several UHD cameras, providing multiple perspectives of Earth, from wide angle imagery down to 1.5M resolution.

The first five satellites are being built by the Lithuanian NanoAvionics to the 16U CubeSat form factor.

The first ETV will be launched in early 2022 with four more to follow in 2022.

Satellite COSPAR Date LS Launch Vehicle Remarks
ETV-A1 2022-002CE 2022-01-13 AFETR Falcon-9 v1.2 (Block 5) with Umbra 02, Capella 7, 8, ICEYE X14, X16, Sich 2-1, ION-SCV 004, Dodona, STORK 1, 2, LabSat, SW1FT, VZLUSAT 2, ETV A1, BRO 5, HYPSO 1, Kepler 16, ..., 19, Flock-4x 1, ..., 44, Lemur-2 148, 149, 150, Lemur-2 146, 147, DEWA-Sat 1, NuX 1, IRIS A, MDASat 1a, 1b, 1c, Gossamer Piccolomini, Tevel 1, ..., 8, Challenger, Delfi-PQ 1, Unicorn 2A, 2D, 2E, FossaSat 2E1, ..., 2E6, MDQube-SAT 1, SATLLA 2A, 2B, Unicorn 1, EASAT 2, HADES, Grizu-263a, PION-BR 1, SanoSat 1, Tartan-Artibeus 1, USA 320, ..., 323
