Nanosat 01 [Arianespace]
Official name NANOSAT 1B
Alternative name Nanosat 1B
Cospar ID 2009-041E
Norad ID 35685
Launch date 2009-07-29
Launch site TTMTR
Launch vehicle Dnepr
Country/Organization Spain
Type application Science
Operator INTA
RCS size MEDIUM
Decay date ON ORBIT
Period (min) 96.79
Inclination (deg) 98.1
Perigee (km) 567
Apogee (km) 644
Eccentricity 0.0635838150289017
Mean motion (revs. per day) 14.8775699969005
Semi-Major axis (km) 6983.635
Raan (deg) 214.7874
Arg of perigee (deg) 178.8448
Shape Poly + 1 Ant
Mass (kg) 22
Height (m) 0.5
Width (m) 0.5
Depth (m) 0.5
Span (m^2) 1
Contractors INTA
Power Solar cells, batteries

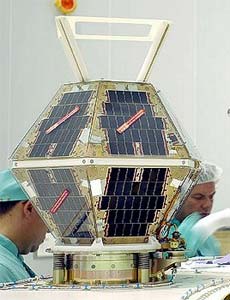

Nanosat 01 is a small technology satellite, which is constructed by the spanish space agency INTA (Instituto Nacional de Técnica Aeroespacial). It weighs about 15 kg, has a power of 20 Watts and one of its applications is to ensure communications with bases in the Antarctica zone. Originally a launch on the maiden Capricornio flight was considered. Nanosat 01 was launched piggy-back with Helios 2A, 4 Essaim and PARASOL on an Ariane-5G+ launch vehicle.

Nanosat 1B is a small technology satellite, which is constructed by the spanish space agency INTA (Instituto Nacional de Técnica Aeroespacial). It is a follow-up project to Nanosat 01.

Satellite COSPAR Date LS Launch Vehicle Remarks
NANOSAT(1) 2004-049B 2004-12-18 FRGUI Ariane-5G+ with Helios 2A, Essaim 1, Essaim 2, Essaim 3, Essaim 4, PARASOL
NANOSAT 1B 2009-041E 2009-07-29 TTMTR Dnepr with DubaiSat 1, UK-DMC 2, AprizeSat 3, AprizeSat 4
