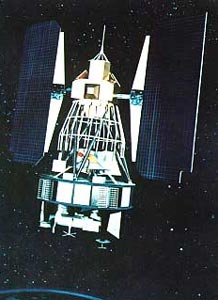

Official name LANDSAT 3
Alternative name Landsat 3
Cospar ID 1978-026A
Norad ID 10702
Launch date 1978-03-05
Launch site AFWTR
Launch vehicle Delta-2910
Country/Organization USA
Type application Earth observation
Operator NASA
RCS size LARGE
Decay date ON ORBIT
Period (min) 103.08
Inclination (deg) 99.01
Perigee (km) 893
Apogee (km) 916
Eccentricity 0.0127142067440575
Mean motion (revs. per day) 13.9697322467986
Semi-Major axis (km) 7282.635
Raan (deg) 102.5148
Arg of perigee (deg) 125.4893
Shape Cone + 2 Pan
Mass (kg) 900
Height (m) 3
Width (m) 3.3
Depth (m) 3.6
Span (m^2) 3.6
Lifetime 1 year design (#1 6 years, #2 7 years, #3 5 years reached)
Contractors RCA Astro Space
Equipment RBV, MSS, DCS
Propulsion ?
Configuration Nimbus Bus
Power 2 deployable solar arrays, batteries

Landsat 1 (formerly ERTS 1, Earth Resources Technological Satellite) was a modified version of the Nimbus 4 meteorological satellite. The near-polar orbiting spacecraft served as a stabilized, earth-oriented platform for obtaining information on agricultural and forestry resources, geology and mineral resources, hydrology and water resources, geography, cartography, environmental pollution, oceanography and marine resources, and meteorological phenomena. To accomplish these objectives, the spacecraft was equipped with:

  • a three-camera return beam vidicon (RBV) to obtain visible and near IR photographic images of the earth,
  • a four-channel multispectral scanner (MSS) to obtain radiometric images of the earth, and
  • a data collection system (DCS) to collect information from remote, individually equipped ground stations and to relay the data to central acquisition stations.

ERTS 1, renamed Landsat 1 in 1975, carried two wide-band video tape recorders (WBVTR) capable of storing up to 30 min of scanner or camera data to give the spacecraft's sensors a near-global coverage capability. An advanced attitude control system consisting of horizon scanners, sun sensors, and a command antenna combined with a freon gas propulsion system permitted the spacecraft's orientation to be maintained within plus or minus 0.7 deg in all three axes. Spacecraft communications included a command subsystem operating at 154.2 and 2106.4 MHz and a PCM narrow-band telemetry subsystem, operating at 2287.5 and 137.86 MHz, for spacecraft housekeeping, attitude, and sensor performance data. Video data from the three-camera RBV system was transmitted in both real-time and tape-recorder modes at 2265.5 MHz, while information from the MSS was constrained to a 20 MHz rf bandwidth at 2229.5 MHz. The spacecraft was turned off on 6 January 1978, when cumulative precession of the orbital plane caused the spacecraft to see almost constant sunlight which led to overheating.

Landsat 2 and 3 were nearly identical satellites to extend the measurements.

Satellite COSPAR Date LS Launch Vehicle Remarks
LANDSAT 1 (ERTS 1) 1972-058A 1972-07-23 AFWTR Delta-900
LANDSAT 2 1975-004A 1975-01-22 AFWTR Delta-2910
LANDSAT 3 1978-026A 1978-03-05 AFWTR Delta-2910 with AMSAT P2D, PIX 1
