Official name COSMOS 1209
Alternative name Cosmos-1209
Cospar ID 1980-072A
Norad ID 11950
Launch date 1980-09-03
Launch site PKMTR
Launch vehicle Soyuz-U
Country/Organization USSR
Type application Earth Observation (film return)
RCS size UNKNOWN
Decay date 1980-09-17
Shape Sphere + Cyl
Mass (kg) 6243.81
Diameter (m) 2.4
Height (m) 6.49
Span (m^2) 6.5
Contractors TsSKB
Equipment Priroda-4 imaging system (2 × KFA-1000, 3 × KATE-200)
Propulsion 11D82M; S5.120 (maneuver module)
Configuration Vostok / Zenit Capsule
Power Batteries

The Resurs-F1 (17F41) was one of three subseries of the Soviet Resurs-F1 film-return earth observation satellite family. They were a follow-on to the Fram (Zenit-4MKT) series.

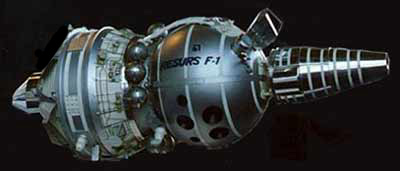

The Resurs-F1 satellites were based on the Zenit-4 reconnaisance satellites. They featured a Zenit/Vostok type 2.3 m spherical reentry capsule, which housed the cameras and film, a service module and a orbital maneuvering module. It was battery powered allowing for 14 days of operations, although up to 10 days on stand-by could be added. The differences between the 17F40, 17F41 and 17F43 versions is not clear.

The Priroda-4 imaging system consisted of a three channel multispectral system that includes two KFA-1000 cameras and three KATE-200 cameras.

The KFA-1000 (SA-20M) cameras with 1000 mm focal lenght provided stereo images of up to 5 m resolution with a 60 km swath width. It had a capacity of 1800 frames.

The KATE-200 (SA-34) camera with 1000 mm focal lenght provided for Earth survey in three spectral bands. It could collect stereoscopic imagery having an along-track overlap of 20, 60, or 80 percent. Resolution of the images, according to spectral band and survey altitude, varied from 10 to 30 m over a 180 km swath width. One of these cameras was coupled with a SA-33 stellar indexing camera for exact geolocation. The KATE-200 had a capacity of 1200 frames, each 180 mm by 180 mm.

All film frames of both systems were marked with codes to record camera parameters, including camera and frame number, film number, focal length, and timing codes.

Satellite COSPAR Date LS Launch Vehicle Remarks
COSMOS 1127 1979-080A 1979-09-05 PKMTR Soyuz-U
COSMOS 1185 1980-046A 1980-06-06 PKMTR Soyuz-U
COSMOS 1203 1980-066A 1980-07-31 PKMTR Soyuz-U
COSMOS 1209 1980-072A 1980-09-03 PKMTR Soyuz-U
COSMOS 1280 1981-063A 1981-07-02 PKMTR Soyuz-U
COSMOS 1301 1981-083A 1981-08-27 PKMTR Soyuz-U
COSMOS 1369 1982-048A 1982-05-25 PKMTR Soyuz-U
COSMOS 1376 1982-056A 1982-06-08 PKMTR Soyuz-U
COSMOS 1401 1982-081A 1982-08-20 PKMTR Soyuz-U
COSMOS 1440 1983-009A 1983-02-10 PKMTR Soyuz-U
COSMOS 1462 1983-045A 1983-05-17 PKMTR Soyuz-U
COSMOS 1468 1983-055A 1983-06-07 PKMTR Soyuz-U
COSMOS 1483 1983-074A 1983-07-20 PKMTR Soyuz-U
COSMOS 1487 1983-080A 1983-08-05 PKMTR Soyuz-U
COSMOS 1498 1983-096A 1983-09-14 PKMTR Soyuz-U
COSMOS 1537 1984-017A 1984-02-16 PKMTR Soyuz-U
COSMOS 1572 1984-060A 1984-06-15 PKMTR Soyuz-U
COSMOS 1575 1984-064A 1984-06-22 PKMTR Soyuz-U
COSMOS 1582 1984-074A 1984-07-19 PKMTR Soyuz-U
COSMOS 1590 1984-087A 1984-08-16 PKMTR Soyuz-U
COSMOS 1591 1984-092A 1984-08-30 PKMTR Soyuz-U
COSMOS 1653 1985-038A 1985-05-22 PKMTR Soyuz-U
COSMOS 1657 1985-044A 1985-06-07 PKMTR Soyuz-U
COSMOS 1663 1985-052A 1985-06-21 PKMTR Soyuz-U
COSMOS 1672 1985-067A 1985-08-07 PKMTR Soyuz-U
COSMOS 1678 1985-077A 1985-08-29 PKMTR Soyuz-U
COSMOS 1708 1985-115A 1985-12-13 PKMTR Soyuz-U
COSMOS 1746 1986-040A 1986-05-28 PKMTR Soyuz-U
