Official name SATCOM 4
Alternative name RCA Satcom IV
Cospar ID 1982-004A
Norad ID 13035
Launch date 1982-01-16
Launch site AFETR
Launch vehicle Delta-3910 PAM-D
Country/Organization USA
Type application Communication
Operator RCA Americom
RCS size LARGE
Decay date ON ORBIT
Period (min) 1445.9
Inclination (deg) 13.18
Perigee (km) 35789
Apogee (km) 36168
Eccentricity 0.00526703447892491
Mean motion (revs. per day) 0.995919496507366
Semi-Major axis (km) 42356.635
Raan (deg) 338.2968
Arg of perigee (deg) 190.0442
Shape Hex Poly + 2 Pan
Mass (kg) 584.74
Height (m) 1.25
Width (m) 1.62
Depth (m) 1.62
Span (m^2) 15.78
Lifetime 7 years (#1, 2); 8 years (#3, 3R, 4)
Contractors RCA Astro
Equipment 24 C-band transponders
Propulsion SVM-7 (#1, 2, 3); Star-30B (3R, 4)
Configuration AS-3000
Power 2 deployable solar arrays, batteries

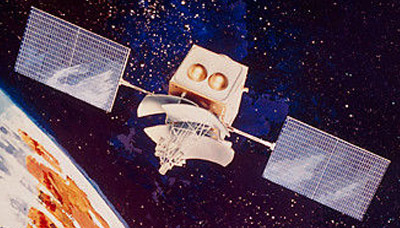

Satcom 1, 2, 3, 3R and 4 were the first generation of geostationary comsats built for RCA Americom.

These satellites were built by RCA Astro using their three-axis stabilized AS-3000 bus, which became the base for several other comsats too. They featured a 24 C-band transponder communications payload. The antenna featured four gridded overlapping reflectors.

The satellites required the development of a more powereful version of the Delta launch vehicle, the Delta-3914, which was partially financed by RCA.

Satcom 1 was launched on launched 13 December 1975. It was replaced in summer 1983 by Satcom 1R and was finally put in a graveyard orbit in June 1984 and turned off.

Satcom 2 followed on 26 March 1976. It was replaced in fall of 1983 by Satcom 2R and then was turned off and moved above synchronous orbit.

Satcom 3 was successfully launched on 7 December 1979, but the satelite was lost, when the apogee engine was fired.

Satcom 3R was orbited on 19 November 1981 as a replacement for Satcom 3. It operated a 131° West.

Satcom 4 was launched on 15 January 1982 and placed on the 82° West position.

This series was succeeded by the advanced Satcom series.

Satellite COSPAR Date LS Launch Vehicle Remarks
SATCOM 1 1975-117A 1975-12-13 AFETR Delta-3914
SATCOM 2 1976-029A 1976-03-26 AFETR Delta-3914
SATCOM 3 1979-101A 1979-12-07 AFETR Delta-3914
SATCOM 3R 1981-114A 1981-11-20 AFETR Delta-3910 PAM-D
SATCOM 4 1982-004A 1982-01-16 AFETR Delta-3910 PAM-D
