Orbcomm-X [OSC]
Official name PEGASUS R/B
Alternative name ORION 38 (Pegasus XL)
Cospar ID 1993-026B
Norad ID 22639
Launch date 1993-04-25
Launch site AFWTR
Launch vehicle Pegasus
Country/Organization USA
Type application Experimental communication M2M/IoT
Operator Orbcomm
RCS size LARGE
Decay date ON ORBIT
Period (min) 100.5
Inclination (deg) 69.92
Perigee (km) 737
Apogee (km) 828
Eccentricity 0.05814696485623
Mean motion (revs. per day) 14.3283582089552
Semi-Major axis (km) 7160.635
Raan (deg) 145.8394
Arg of perigee (deg) 1.1028
Shape Cyl + 1 Nozzle
Mass (kg) 124.88
Diameter (m) 0.965
Height (m) 1.34
Span (m^2) 1.34
Contractors Orbital Sciences Corporation (OSC)
Equipment Orbcomm payload
Propulsion None
Power Solar cells, batteries

These three satellites are experimental communications satellites to test components of the Orbcomm satellite constellation.

Orbcomm-X carried, among other equipment, a GPS receiver. It failed to respond after deployment.

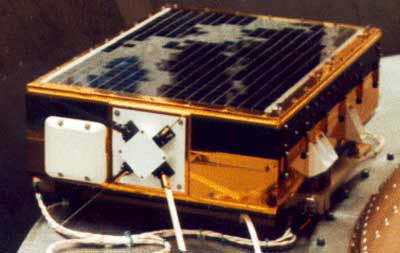

Orbcomm-CDS 1 (Capability Demonstration Satellite), a.k.a. OXP carried an experimental payload to determine global VHF frequency utilization prior to the launch of the Orbcomm constellation satellites. It measured user density, power levels and interference world-wide. OXP features integral solar panels and antennas, and a passive attitude control system using bar magnets, and weighed 13.6 kg. The spacecraft has also been referred to as the CDS Pathfinder Experimental Mobile Communications Satellite.

Orbcomm-CDS 2, a.k.a. VSUME (VHF Spectrum Utilization Measurement Experiment), appears to be similar to CDS 1.

Satellite COSPAR Date LS Launch Vehicle Remarks
ORBCOMM-X 1991-050C 1991-07-17 FRGUI Ariane-40 H10 with ERS 1, SARA, Tubsat A, UoSAT 5
OXP 1 1993-009A 1993-02-09 AFETR Pegasus with SCD 1
PEGASUS R/B 1993-026B 1993-04-25 AFWTR Pegasus with ALEXIS
