When the Mexican government planned the implementation of a second-generation satellite
system, it turned again to Hughes Space and Communications Company. The new pair of
spacecraft is called Solidaridad, signifying the way satellite telecommunications are
uniting the urban and remote parts of the country with one another and the rest of the
world. These replace the two Hughes-built Morelos satellites,
the first of which was retired in 1994 after nine years' service. The Solidaridad contract
was signed in May 1991. The spacecraft are operated by the government agency
Telecomunicaciones de Mexico (Telecomm).
Hughes provided two Hughes HS-601 model high-power
spacecraft, associated ground equipment, and training. The first satellite was launched
Nov. 19, 1993, and the second was Oct. 7, 1994, on Ariane-44LP H10+ and Ariane-44L H10+ boosters respectively
from Kourou, French Guiana. The Solidaridad contract calls for a satellite life of 14
years.
To accommodate the high power and capacity Telecomm demands of Solidaridad, the new

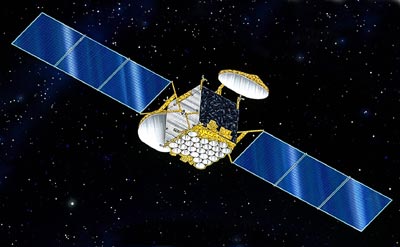

spacecraft differ markedly from Morelos. Solidaridad is a body-stabilized spacecraft. It
consists of a cube-shaped center portion containing the electronic and propulsion systems,
and, along the north-south axis, a pair of three-panel solar array wings that total almost
21 meters (68.8 feet) in length. Each spacecraft weighs about 1641 kg (3610 lb) at
beginning of life on orbit. Its solar arrays provide 3300 Watts, and a 27-cell
nickel-hydrogen battery provides power during eclipse.
Like Morelos, each Solidaridad spacecraft carries 18 active
C-band transponders, but with much higher power that allows reception by small terminals.
Because the transponders serve various regions, they are powered by Hughes-built
solid-state power amplifiers (SSPAs) ranging from 10 to 16 Watts.
There are 16 active Ku-band transponders--four times the existing capacity--with
42.5 watt traveling-wave tube amplifiers. In addition, Solidaridad has one L-band channel
for service to users traveling by land, sea, or air and in rural areas. This service has
four 21 watt SSPAs linked in parallel.
All bands cover Mexico, and the C- and Ku-band coverage extends into the southwestern
United States. In addition, spot beams in Ku-band reach such major U.S. cities as Chicago,
Dallas, Houston, Los Angeles, Miami, New York, San Antonio, San Francisco, Tampa, and
Washington, D.C. C-band coverage includes the Caribbean and Central and South America.
With the antennas deployed the spacecraft are 7.2 meters (23.5 feet) across. The C-band
antenna is on the west side of the spacecraft and Ku-band on the east. Both are 2.4-meter
by 1.8-meter (8-foot by 6-foot) oval X-wing antennas with two reflecting surfaces, one of
which is sensitive to vertical polarization and the other to horizontal. A 26-element
L-band cup dipole array covers the earth-facing side of the spacecraft.
Solidaridad's antennas and solar panels fold up alongside the body for launch, forming
a cube 2.7 meters by 3.5 meters by 3.1 meters (8.8 feet by 11.6 feet by 10.1 feet). A
flight-proven bipropellant propulsion system features an integral 490-Newton (110-lbf)
Marquardt liquid apogee motor, plus twelve 22-Newton (5-lbf) thrusters for stationkeeping.
Solidaridad suffered failures of its satellite control processors (SCP) in 1999 and
2000, leading to a total loss.
