Official name SIMPL
Alternative name SIMPL (Satlet Initial-Mission Proofs and Lessons), HISat (Hyper Integrated Satellite)
Cospar ID 1998-067NF
Norad ID 42983
Launch date 1998-11-20
Launch site TTMTR
Launch vehicle Atlas-5(401)
Country/Organization USA
Type application Technology
Operator NovaWurks
RCS size MEDIUM
Decay date 2022-07-26
Shape Box
Mass (kg) 50
Height (m) 0.3
Width (m) 0.3
Depth (m) 0.3
Span (m^2) 0.3
Lifetime few weeks
Contractors NovaWurks
Equipment Imager, QIKcom-1 payload
Propulsion ?
Configuration 6 aggregated HiSat satlets
Power Solar cells, batteries

SIMPL (Satlet Initial-Mission Proofs and Lessons), also known as HISat (Hyper Integrated Satellite), is mission to demonstrate the satlets technology. It is developed by NovaWurks, in collaboration with NanoRacks MicroSat.

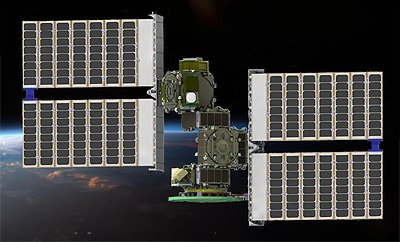

SIMPL is a modular, Hyper Integrated Satellite (HISat) designed to provide complete satellite functionality in a nanosatellite scale. It is the first flight experiment of a satellite based on cellular architecture where the satellite or PAC (Package of Aggregated Cells) is composed of identical building blocks called satlets. This mission is composed of six satlets and two solar arrays, which wil be assembled by astronats on board of the ISS before being deployed.

It carries electro-optical imaging equipment.

As an additional payload, SIMPL carries the QIKcom 1 amateur communications payload for the US Naval Academy Satellite Lab, containing an APRS packet radio communications transponders for relaying remote telemetry, sensor and user data from remote users and amateur radio environmental experiments or other data sources back to Amateur Radio experimenters via a global network of internet linked volunteer ground stations.

It also carried the SNAPS 0.25U Cubesat. It was not deployed from SIMPL, but it is unclear, if it stayed attached intentionally.

The satellite was launched onboard the Cygnus CRS-4 resupply craft to the International Space Station (ISS). It will be the first NanoRacks microsatellite deployed from ISS and the first propulsion-capable satellite deployed from NanoRacks-MicroSat-Deployer (Kaber). This is a commercial deployer system aimed at addressing the growing market of customers wanting to deploy microsatellites in orbit. The deployment of SIMPL has been delayed by problems over radio licensing.

SIMPL was assembled in October 2017 on the ISS and was eventually deployed on 27 October 2017. Unfortunately it failed to power up after deployment.

Satellite COSPAR Date LS Launch Vehicle Remarks
SIMPL 1998-067NF 1998-11-20 TTMTR Atlas-5(401) with Cygnus CRS-4, AggieSat 4, Bevo 2, Flock-2e 1, ..., 12, CADRE, MinXSS 1, Nodes 1, Nodes 2, STMSat 1, SNAPS
