Official name ASTRA 2D
Alternative name Astra 2D
Cospar ID 2000-081A
Norad ID 26638
Launch date 2000-12-20
Launch site FRGUI
Launch vehicle Ariane-5G
Country/Organization Luxembourg
Type application Communication (Direct Broadcasting)
Operator SES
RCS size LARGE
Decay date ON ORBIT
Period (min) 1454.54
Inclination (deg) 9.62
Perigee (km) 36142
Apogee (km) 36152
Eccentricity 0.000138324065620937
Mean motion (revs. per day) 0.990003712513922
Semi-Major axis (km) 42525.135
Raan (deg) 52.4371
Arg of perigee (deg) 178.8337
Shape Cyl
Mass (kg) 1414
Diameter (m) 2.2
Height (m) 8
Span (m^2) 8
Lifetime 10 years
Contractors Boeing
Equipment 18 Ku-band transponders (#2D); 20 Ku-band transponders (#3A)
Propulsion Star-30C
Configuration BSS-376HP
Power Solar cells (body mounted and drop-skirt), batteries

In August 1999, Hughes Space and Communications International, now Boeing Satellite Systems, was awarded two satellite contracts from Société Européenne des Satellites (SES) of Luxembourg. The company ordered its tenth Boeing satellite, ASTRA 3A, in August 2000. The spacecraft is stationed at the orbital position of 23.5 degrees East longitude. ASTRA 3A is a Boeing BSS-376HP model.

Astra 2D, the first spin-stabilized satellite in the SES fleet, is a Boeing 376HP, for high-power, satellite. It was successfully launched on an Ariane 5 on Dec. 19, 2000. The Boeing 376 is one of the most popular spacecraft models. The delivery-in-orbit contract includes the satellite, launch services, and ground station control software for use at the control center, plus training for new satellite controllers. The Astra satellites are controlled from the SES ground station at Betzdorf in Luxembourg.

Astra 2D is the 55th 376 to be ordered from Hughes and Boeing. It will carry 18 traveling-wave tube amplifiers, 16 of which will be active. The signals will be transmitted via 39 watt traveling-wave tube amplifiers. Astra 2D will deliver digital direct-to-home television to Great Britain and Ireland. Two of the satellite's four on-board receivers will be used at any given time.

ASTRA 3A will help SES ASTRA meet growing demand for digital satellite services and will provide follow-on capacity for Deutsche Telekom's Kopernikus satellite at 23.5 degrees East. ASTRA 3A has a contracted service life of at least 10 years. The satellite provides high-power cable and direct-to-home broadband services to Germany, Austria and Switzerland. ASTRA 3A, a spin-stabilized spacecraft, operates with 20 active Ku-band transponders. The satellite was launched on 28 March 2002, aboard an Ariane-44L H10-3 rocket.

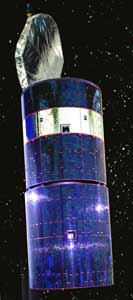

The BSS-376HP spin-stabilized spacecraft consists of two main sections. One is the spinning section, which contains the apogee kick motor, power system, primary propulsion, and most of the attitude control and command and telemetry subsystem elements. The fully redundant subsystem controls and monitors the spacecraft through all mission phases. The primary propulsion subsystem controls spacecraft orbital velocity, inclination, attitude, and spin speed. The other main section of the spacecraft is the despun portion, which houses the customized communications payload, including the transmitters, receivers, and antennas.

All BSS-376 models have two telescoping cylindrical solar panels. These panels and the deployable antennas are stowed for compactness during launch. The highly reliable design makes full use of a nickel-hydrogen battery to maintain uninterrupted broadcasting during eclipses. The Astra 2D and 3A solar panels use gallium arsenide solar cells similar to those proven on previous Hughes spacecraft. The 376 design minimizes the number of required mechanisms and has never had a deployment failure.

In early January 2023, Astra 2D was put into a graveyard orbit.

Satellite COSPAR Date LS Launch Vehicle Remarks
ASTRA 2D 2000-081A 2000-12-20 FRGUI Ariane-5G with GE 8, LDREX
ASTRA 3A 2002-015B 2002-03-29 FRGUI Ariane-44L H10-3 with JCSat 8
