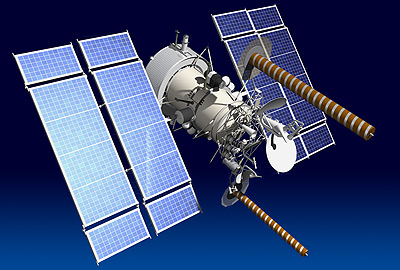

Raduga-1 (Globus) [ISS Reshetnev]
Official name RADUGA 1-7
Alternative name Raduga 1
Cospar ID 2004-010A
Norad ID 28194
Launch date 2004-03-27
Launch site TTMTR
Launch vehicle Proton-K Blok-DM-2
Country/Organization USSR / Russia
Type application Military Communication
RCS size LARGE
Decay date ON ORBIT
Period (min) 1436.15
Inclination (deg) 13.23
Perigee (km) 35772
Apogee (km) 35803
Eccentricity 0.000433112120153685
Mean motion (revs. per day) 1.00268077847022
Semi-Major axis (km) 42165.635
Raan (deg) 23.8102
Arg of perigee (deg) 219.2604
Shape Cyl + 2 Pan
Mass (kg) 2500
Diameter (m) 2
Height (m) 5
Span (m^2) 20
Lifetime 3 years
Contractors NPO Prikladnoi Mekhaniki (NPO PM)
Equipment 6 Tor C-Band transponders
Configuration KAUR-3
Power 2 deployable solar arrays, batteries

The Globus or Raduga-1 satellites are military commmunication satellites. They are improved versions of the Gran (Raduga) satellites.

The Globus satellites operate in the geostationary YeSSS-2 Unified Satellite Communication System. The communication payload consists of "Tor" C-band transponders for communication with fixed and mobile platforms.

Raduga-1 8 was retired in 2015 and was moved into a graveyard orbit above the geostationary belt.

Satellite COSPAR Date LS Launch Vehicle Remarks
RADUGA 1-1 1989-048A 1989-06-21 TTMTR Proton-K Blok-DM-2
RADUGA 1-2 1990-116A 1990-12-27 TTMTR Proton-K Blok-DM-2
RADUGA 1-3 1994-008A 1994-02-05 TTMTR Proton-K Blok-DM-2
RADUGA 1-4 1999-010A 1999-02-28 TTMTR Proton-K Blok-DM-2
RADUGA 1-5 2000-049A 2000-08-28 TTMTR Proton-K Blok-DM-2
RADUGA 1-6 2001-045A 2001-10-06 TTMTR Proton-K Blok-DM-2
RADUGA 1-7 2004-010A 2004-03-27 TTMTR Proton-K Blok-DM-2
RADUGA 1-8 2009-010A 2009-02-28 TTMTR Proton-K Blok-DM-2
