Official name HJ-1A
Alternative name Huan Jing 1A
Cospar ID 2008-041A
Norad ID 33320
Launch date 2008-09-06
Launch site TSC
Launch vehicle CZ-2C (3) SMA
Country/Organization China
Type application Earth observation
Operator CRESDA
RCS size LARGE
Decay date ON ORBIT
Period (min) 97.12
Inclination (deg) 97.64
Perigee (km) 608
Apogee (km) 634
Eccentricity 0.0209339774557166
Mean motion (revs. per day) 14.827018121911
Semi-Major axis (km) 6999.135
Raan (deg) 142.9081
Arg of perigee (deg) 334.2229
Shape Box + 2 Pan
Mass (kg) 510
Height (m) 1.4
Width (m) 1
Depth (m) 1
Span (m^2) 4
Contractors DFH Satellite Co. Ltd of CAST
Configuration CAST968B Bus
Power 2 deployable solar arrays, batteries

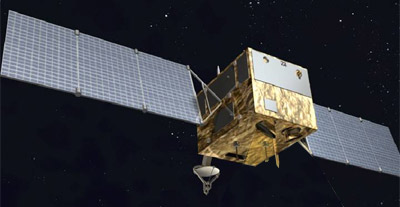

HJ 1A and 1B (Huan Jing = Environment) satellites are small chinese Earth observation satellites operated by the China Centre for Resources Satellite Data and Application (CRESDA). The satellite constellation is composed of a number of small satellites, the ground system, and the application system. It will provide all-weather (3 to 100 m meter) imagery. The Huan Jing constellation consists of two small optical satellites, the HJ-1A and the HJ-1B, and one radar satellite, the HJ-1C.

The payload instrument on board includes a CCD camera (both), a hyper-spectral camera (HJ 1A) or an infrared camera (HJ 1B).

HJ 1A is also the Small Multi-Mission Satellite (SMMS) of Asia Pacific Space Cooperation Organization (APSCO) and it will be the important data resources of APSCO space application. SMMS is a joint venture payload between China, Iran, South Korea, Mongolia, Pakistan, Thailand and Bangladesh under the Asian-Pacific organization.

Satellite COSPAR Date LS Launch Vehicle Remarks
HJ-1A 2008-041A 2008-09-06 TSC CZ-2C (3) SMA with HJ 1B
HJ-1B 2008-041B 2008-09-06 TSC CZ-2C (3) SMA with HJ 1A
