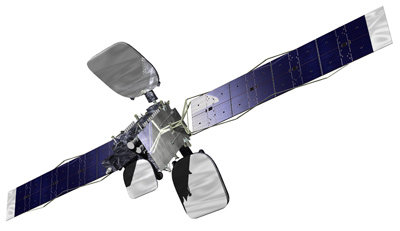

Intelsat 23 [OSC]
Official name INTELSAT 23
Alternative name Intelsat 23 (IS 23)
Cospar ID 2012-057A
Norad ID 38867
Launch date 2012-10-14
Launch site TTMTR
Launch vehicle Proton-M Briz-M (Ph.3)
Country/Organization USA
Type application Communication
Operator Intelsat
RCS size LARGE
Decay date ON ORBIT
Period (min) 1436.09
Inclination (deg) 0.01
Perigee (km) 35782
Apogee (km) 35791
Eccentricity 0.000125745742109455
Mean motion (revs. per day) 1.00272267058471
Semi-Major axis (km) 42164.635
Raan (deg) 81.586
Arg of perigee (deg) 92.0979
Shape Box + 2 Pan
Mass (kg) 2700
Height (m) 5.5
Width (m) 2.3
Depth (m) 2.3
Span (m^2) 22.4
Lifetime 15 years
Contractors Orbital Sciences Corporation (OSC)
Equipment 24 C-band transponders, 15 Ku-band transponders
Propulsion IHI BT-4
Configuration Star-2.4E Bus
Power 2 deployable solar arrays, batteries

Orbital Sciences Corporation announced in December 2009 that it has been selected by Intelsat to design, build and deliver the Intelsat 23 (IS-23) commercial communications satellite. The satellite will be based on Orbital?s flight-proven Star-2 platform. The IS-23 satellite will generate 4.8 kilowatts of payload power and carry 15 active Ku-band and 24 active C-band transponders. The IS-23 satellite will be located in orbit at 53 degrees West longitude following its launch in late 2011. The spacecraft will provide communications services for the Americas, Europe and Africa. The IS-23 satellite is expected to have a useful life of at least 15 years.

Satellite COSPAR Date LS Launch Vehicle Remarks
INTELSAT 23 2012-057A 2012-10-14 TTMTR Proton-M Briz-M (Ph.3)
