EchoStar 105 / SES 11 [Airbus Defence and Space]
Official name ECHOSTAR 105/SES 11
Alternative name SES-11
Cospar ID 2017-063A
Norad ID 42967
Launch date 2017-10-11
Launch site AFETR
Launch vehicle Falcon-9 v1.2
Country/Organization Luxembourg, USA
Type application Communication
Operator SES, Echostar
RCS size LARGE
Decay date ON ORBIT
Period (min) 1436.1
Inclination (deg) 0.01
Perigee (km) 35774
Apogee (km) 35799
Eccentricity 0.000349293728081819
Mean motion (revs. per day) 1.00271568832254
Semi-Major axis (km) 42164.635
Raan (deg) 318.987
Arg of perigee (deg) 275.2591
Shape Box + 2 Pan
Mass (kg) 5300
Height (m) 7
Width (m) 3.3
Depth (m) 3.3
Span (m^2) 35
Lifetime 15 years
Contractors Airbus Defence and Space
Equipment 24 Ku-band transponders, 24 C-band transponders
Propulsion ?
Configuration Eurostar-3000
Power 2 deployable solar arrays, batteries

EchoStar and SES World Skies ordered in September 2014 jointly the EchoStar 105 / SES 11 comsat.

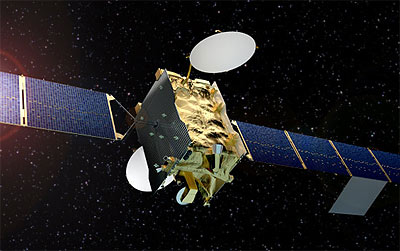

The satellite was manufactured by Airbus Defence and Space based on the highly reliable Eurostar-3000 platform. EchoStar 105 / SES 11 carries 24 Ku-band transponders as well as 24 C-band transponders (36 MHz equivalent). The spacecraft has a separated mass of approximately 5,200 kg and an end of life budget for the payloads of approximately 12 kW. The spacecraft's Ku-band capacity, originally called EchoStar-20 during planning, will replace the existing SES satellite AMC-15 at 105° West, an orbital position where EchoStar has been SES's anchor customer since 2006. The spacecraft's C-band capacity will also allow SES to provide replacement capacity for AMC-18 also at 105° West.

The satellite is planned to be launched into space in Q4 2017.

Satellite COSPAR Date LS Launch Vehicle Remarks
ECHOSTAR 105/SES 11 2017-063A 2017-10-11 AFETR Falcon-9 v1.2
