Official name SENTINEL 5P
Alternative name Sentinel-5P
Cospar ID 2017-064A
Norad ID 42969
Launch date 2017-10-13
Launch site PKMTR
Launch vehicle Rokot-KM
Country/Organization Europe
Type application Earth observation
Operator ESA
RCS size LARGE
Decay date ON ORBIT
Period (min) 101.44
Inclination (deg) 98.76
Perigee (km) 826
Apogee (km) 828
Eccentricity 0.00120918984280532
Mean motion (revs. per day) 14.1955835962145
Semi-Major axis (km) 7205.135
Raan (deg) 86.605
Arg of perigee (deg) 85.1516
Shape Hex Cyl + 3 Pan
Mass (kg) 817.8
Diameter (m) 2
Height (m) 2.7
Span (m^2) 7
Lifetime 7 years
Contractors EADS Astrium → Airbus Defence and Space
Equipment Tropomi
Propulsion ?
Configuration AstroBus-L 250 M (AstroSat-250)
Power 3 deployable solar arrays, batteries

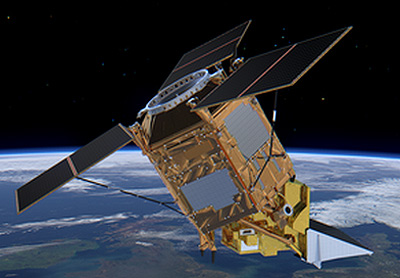

Astrium has been selected by the European Space Agency (ESA) as prime contractor for the high-performance satellite (Sentinel 5-Precursor), a low-cost mission to monitor atmospheric chemistry.

S5p is part of the Global Monitoring for Environment and Security programme (GMES), a joint undertaking of the European Commission and the European Space Agency (ESA). GMES aims to supply geo-information products and services based on the use of images from space that will help European institutions and public authorities to fulfil their mission of safeguarding the civil population, managing risks, and protecting the environment. Sentinel-5p is designed for providing continuity to atmospheric spectrometry of the ENVISAT and EOS-Aura missions bridging the gap until the launch of the Sentinel-5 instrument.

Sentinel 5 Precursor will carry the Tropomi tropospheric monitoring instrument under development for ESA by Dutch Space of the Netherlands, an Astrium subsidiary.

With a seven year lifetime, Sentinel 5p will maintain the continuity of science data before the Sentinel-5 instrument becomes operational towards the end of this decade. The Sentinel 5 instrument is scheduled to fly on the MetOp Second Generation satellites.

The launch on a Rokot-KM vehicle was originally scheduled for early 2015, but was eventually delayed until October 2017.

Satellite COSPAR Date LS Launch Vehicle Remarks
SENTINEL 5P 2017-064A 2017-10-13 PKMTR Rokot-KM
