Official name IRNSS 1I
Alternative name IRNSS-R1I
Cospar ID 2018-035A
Norad ID 43286
Launch date 2018-04-11
Launch site SRI
Launch vehicle PSLV-XL
Country/Organization India
Type application Navigation
Operator ISRO
RCS size LARGE
Decay date ON ORBIT
Period (min) 1436.09
Inclination (deg) 29.1
Perigee (km) 35708
Apogee (km) 35865
Eccentricity 0.00219356461235382
Mean motion (revs. per day) 1.00272267058471
Semi-Major axis (km) 42164.635
Raan (deg) 80.2343
Arg of perigee (deg) 183.7452
Shape Box + 2 Pan
Mass (kg) 1425
Height (m) 1.6
Width (m) 1.5
Depth (m) 1.5
Span (m^2) 10
Lifetime 12 years
Contractors ISRO
Equipment Navigation payload, CDMA ranging payload, laser retro-reflector
Propulsion LAM engine
Configuration I-1K (I-1000) Bus
Power 2 deployable solar arrays, batteries

The Indian Government has approved in May 2006, a project to implement an Indian Regional Navigation Satellite System (IRNSS) in the next six to seven years.

IRNSS consists of a constellation of seven satellites and a large ground segment. Three of the seven satellites in IRNSS constellation are in GEO (Geostationary Orbit) at 32.5°, 83° and 131.5° East, while the other four satellites are in an inclined geosynchronous orbit with an inclination of 29° with longitude crossing at 55° and 111.75° East. All the seven satellites have continuous radio visibility with Indian control stations.

Each satellite has two payloads: a navigation payload and CDMA ranging payload in addition with a laser retro-reflector. The payload generates navigation signals at L5 and S-band. The design of the payload makes the IRNSS system inter-operable and compatible with GPS and Galileo.

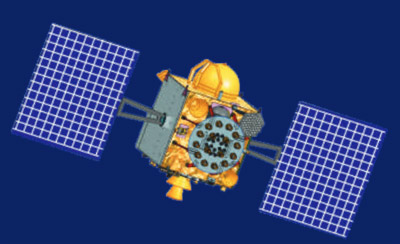

The satellites are based on the I-1K (I-1000) bus. Both GEO and GSO satellites have the same configuration.

With the system becoming operational, it was named NavIC (Navigation with Indian Constellation).

In addition to the seven original satellites, ISRO announced in January 2016, that four more will be built as spares. The first of the spares will be launched in late 2017 to replace IRNSS 1A, which suffered failures in its atomic clocks.

The launch of the first replacement satellite, IRNSS 1H, failed, when the heat shield failed to separate. Although it reached orbit, it was a loss of mission.

Satellite COSPAR Date LS Launch Vehicle Remarks
IRNSS R1A 2013-034A 2013-07-01 SRI PSLV-XL
IRNSS 1B 2014-017A 2014-04-04 SRI PSLV-XL
IRNSS 1C 2014-061A 2014-10-15 SRI PSLV-XL
IRNSS 1D 2015-018A 2015-03-28 SRI PSLV-XL
IRNSS 1E 2016-003A 2016-01-20 SRI PSLV-XL
IRNSS 1F 2016-015A 2016-03-10 SRI PSLV-XL
IRNSS 1G 2016-027A 2016-04-28 SRI PSLV-XL
IRNSS 1H/PSLV 2017-051A 2017-08-31 SRI PSLV-XL
IRNSS 1I 2018-035A 2018-04-11 SRI PSLV-XL
