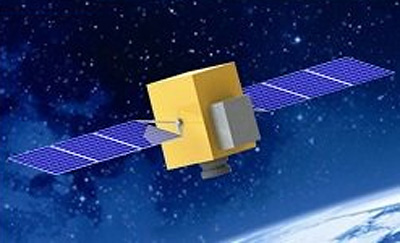

OHS-2 [Zhuhai Orbita]
Official name ZHUHAI-1 OHS-03
Alternative name OHS-2C (Guiyang 1)
Cospar ID 2018-040D
Norad ID 43442
Launch date 2018-04-26
Launch site JSC
Launch vehicle CZ-11
Country/Organization China
Type application Earth observation
Operator Zhuhai Orbita Control Engineering Ltd.
RCS size MEDIUM
Decay date ON ORBIT
Period (min) 89.06
Inclination (deg) 97.09
Perigee (km) 221
Apogee (km) 235
Eccentricity 0.0307017543859649
Mean motion (revs. per day) 16.1688749157871
Semi-Major axis (km) 6606.135
Raan (deg) 325.0103
Arg of perigee (deg) 263.9431
Shape Box
Mass (kg) 69
Height (m) 0.5
Width (m) 0.4
Depth (m) 0.4
Span (m^2) 1
Equipment Video imager
Propulsion ?
Power 2 deployable fixed solar arrays, batteries

The OHS 1 earth observation satellites are the hyperspectral component of the Chinese Orbita or Zhuhai-1 earth observation system by Zhuhai Orbita Control Engineering Ltd.

The OHS-2 satellites are the hyperspectral component of the constellation. The operational Orbita constellation is to consist of ten video satellites (OVS-2), hyperspectral satellites (OHS-2) and small personal satellites (OPS-2).

These satellites have a ground resolution of 10 m and a swath width of 150 km. The spectral resolution is 2.5 nm. It gab capture images of 150 km × 2500 km in push-broom mode.

A constellation of four satellites can cover the entire globe in 5 days and provide multiple revisits a day of a specific site.

The first four OHS-2 hyperspectral satellites were launched on a CZ-11 rocket in 2018.

Satellite COSPAR Date LS Launch Vehicle Remarks
ZHUHAI-1 OHS-01 2018-040A 2018-04-26 JSC CZ-11 with Zhuhai-1 OVS 2A, Zhuhai-1 OHS 2B, Zhuhai-1 OHS 2C, Zhuhai-1 OHS 2D
ZHUHAI-1 OHS-02 2018-040C 2018-04-26 JSC CZ-11 with Zhuhai-1 OVS 2A, Zhuhai-1 OHS 2A, Zhuhai-1 OHS 2C, Zhuhai-1 OHS 2D
ZHUHAI-1 OHS-03 2018-040D 2018-04-26 JSC CZ-11 with Zhuhai-1 OVS 2A, Zhuhai-1 OHS 2A, Zhuhai-1 OHS 2B, Zhuhai-1 OHS 2D
ZHUHAI-1 OHS-04 2018-040E 2018-04-26 JSC CZ-11 with Zhuhai-1 OVS 2A, Zhuhai-1 OHS 2A, Zhuhai-1 OHS 2B, Zhuhai-1 OHS 2C
ZHUHAI-1 03B 2019-060C 2019-09-19 JSC CZ-11 with Zhuhai-1 OVS 3A, Zhuhai-1 OHS 3B, Zhuhai-1 OHS 3C, Zhuhai-1 OHS 3D
ZHUHAI-1 03C 2019-060D 2019-09-19 JSC CZ-11 with Zhuhai-1 OVS 3A, Zhuhai-1 OHS 3A, Zhuhai-1 OHS 3C, Zhuhai-1 OHS 3D
ZHUHAI-1 03D 2019-060E 2019-09-19 JSC CZ-11 with Zhuhai-1 OVS 3A, Zhuhai-1 OHS 3A, Zhuhai-1 OHS 3B, Zhuhai-1 OHS 3D
ZHUHAI-1 03E 2019-060F 2019-09-19 JSC CZ-11 with Zhuhai-1 OVS 3A, Zhuhai-1 OHS 3A, Zhuhai-1 OHS 3B, Zhuhai-1 OHS 3C
