CICERO [Tyvak]
Official name CICERO 10
Alternative name CICERO-10
Cospar ID 2018-088A
Norad ID 43690
Launch date 2018-11-11
Launch site RLLC
Launch vehicle Electron KS
Country/Organization USA (CICERO) / Monaco (OSM)
Type application Earth observation
Operator GeoOptics Inc. / OSM (owner #OSM-1)
RCS size MEDIUM
Decay date 2024-07-20
Shape Box + 2 Pan
Mass (kg) 10
Height (m) 0.3
Width (m) 0.2
Depth (m) 0.1
Span (m^2) 0.6
Contractors Tyvak Nano-Satellite Systems, Inc. (#1-12); Orbital Solutions Monaco (#OSM-1)
Equipment Cion GPS radio occultation payload

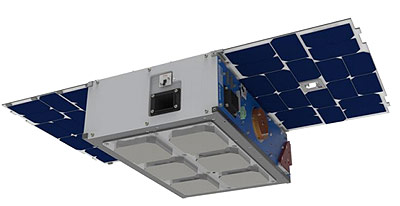

Configuration CubeSat (6U)
Power Solar cells, batteries

CICERO (Community Initiative for Cellular Earth Remote Observation) is a constellation of 24+low-Earth Orbiting (LEO) micro-satellites for performing GPS and Galileo radio occultation (GNSS-RO) of Earth?s atmosphere and surface remote sensing by GNSS reflection. They are operated by GeoOptics.

The system will deliver critical data on the state of the earth to scientists and decision makers worldwide. Products will include high-accuracy profiles of atmospheric pressure, temperature, and moisture; 3D maps of the electron distribution in the ionosphere; and a variety of ocean and ice properties. Principal applications will be weather forecasting, climate research, and space weather monitoring.

Originally GeoOptics developed CICERO 115 kg microsatellites together with the University of Colorado Laboratory for Atmospheric and Space Physics (LASP) using the TriG GNSS-RO payload developed to fly on the FORMOSAT 7 / COSMIC-2 mission. Later during development, the massive miniaturization of the GNSS-RO payload, called Cion, allowed the satellite design to be changed to a much smaller 6U CubeSat based version built by Tyvak Nano-Satellite Systems.

At least one more satellite was built by Orbital Solutions Monaco (OSM) on Tyvak's design and is owned by OSM. This satellite is operated with the GeoOptics satellites for a share on the revenue.

CICERO will be built up over time, starting with the launch of a first pathfinder spacecraft in mid 2017. The first four operational satellites, called OP-1 constellation, will follow soon after.

For later launches, GeoOptics reportedly has an agreement with Virgin Galactic to use the LauncherOne rocket.

CICERO satellites are launched as secondary payloads and on shared launches:

  • CICERO 6 was the first satellite launched in June 2017 on a PSLV-XL rocket.
  • Three more satellites, CICERO 1, 2 and 3 followed in July 2017 on a Russian Soyuz-2-1a Fregat booster. Reportedly these three satellites are all inoperative after deployment.
  • CICERO 7 was successfully launched on a PSLV-XL on 12 January 2018.
  • One more satellite, CICERO 10, was launched in November 2018 on an Electron KS rocket.
  • CICERO 8 was launched in November 2018 on a PSLV-CA launch vehicle.
  • OSM-1 CICERO was launched in September 2020 on a Vega rocket.
Satellite COSPAR Date LS Launch Vehicle Remarks
CICERO 6 2017-036AE 2017-06-23 SRI PSLV-XL with Cartosat 2E, NIUSAT, CE-SAT 1, Max Valier Sat, Venta 1, CICERO 6, Lemur-2 34, ..., 41, Blue Diamond, Green Diamond, Red Diamond, COMPASS 2, InflateSail, LituanicaSAT 2, URSA MAIOR, NUDTSat, Pegasus, UCLSat, VZLUsat 1, D-Sat, PACSCISAT, Aalto 1, ROBUSTA 1B, SUCHAI, skCUBE, IDEA
OBJECT AA 2017-042AA 2017-07-14 TTMTR Soyuz-2-1a Fregat with Kanopus-V-IK 1, Flying Laptop, WNISAT 1R, NORSAT 1, NORSAT 2, TechnoSat, CICERO 1, 2, Landmapper-BC 1, 2, MKA-N 1, 2, Flock-2k 1, ..., 48, Lemur-2 42, ..., 49, NanoACE, Mayak, Iskra-MAI-85, UTE-UESOR
CICERO 7 2018-004AJ 2018-01-12 SRI PSLV-XL with Cartosat 2F, Microsat-TD, LEO Vantage 1, Carbonite 2, ICEYE X1, INS 1C, Arkyd 6A, Landmapper-BC 3 v2, Lemur-2 68, ..., 71, Flock-3p' 1, ..., 4, MicroMAS 2a, PicSat, CANYVAL-X 1, 2, CNUSail 1, KAUSAT 5, SIGMA, DemoSat 2, GeoStare, Fox 1D, STEP Cube Lab, SpaceBEE 1, ..., 4
CICERO 10 2018-088A 2018-11-11 RLLC Electron KS with Lemur-2 82, Lemur-2 83, Proxima 1, Proxima 2, Irvine 01, NABEO 1
CICERO 8 2018-096U 2018-11-29 SRI PSLV-CA with HySIS, BlackSky 1, Flock-3r 1, ..., 16, Lemur-2 84, ..., 87, Hiber 1, HSAT 1, CASE, Centauri 2, FACSAT 1, InnoSat 2, Reaktor Hello World, 3Cat 1
OSM-1 CICERO 2020-061Y 2020-09-03 FRGUI Vega with Athena, ION-SCV 1, ESAIL, UPMSat 2, NEMO-HD, ÑuSat 6, GHGSat C1, Flock-4v 1, ..., 26, Lemur-2 112, ..., 119, SpaceBEE 10, ..., 21, FSSCat A, B, NAPA 1, TARS, EG 2, OSM 1 CICERO, DIDO 3, PICASSO, SIMBA, TRISAT, AMICal-Sat, TTÜ100
