Official name KL-ALPHA A
Alternative name KL-Alpha-A
Cospar ID 2019-077A
Norad ID 44785
Launch date 2019-11-17
Launch site JSC
Launch vehicle Kuaizhou-1A
Country/Organization Germany
Type application Communication
Operator KLEO Connect
RCS size MEDIUM
Decay date ON ORBIT
Period (min) 106.2
Inclination (deg) 88.91
Perigee (km) 1041
Apogee (km) 1059
Eccentricity 0.00857142857142857
Mean motion (revs. per day) 13.5593220338983
Semi-Major axis (km) 7428.135
Raan (deg) 265.3504
Arg of perigee (deg) 150.6587
Shape Box + 1 Pan
Mass (kg) 70
Height (m) 1
Width (m) 0.5
Depth (m) 0.5
Contractors CAS
Equipment Ka-band payload
Power solar arrays, batteries

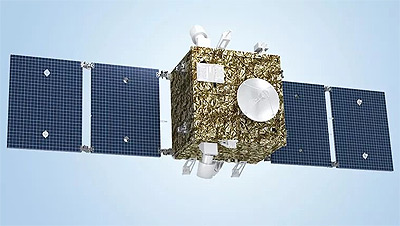

The KL-Alpha A and B satellites are test satellites for a global multimedia satellite system for the German company KLEO Connect.

The satellites were built by CAS Microspace and feature a Ka-band communications payload.

The purpose of the alpha phase test satellites is to assess the Ka-band mobile communication environment adaptability, the verification of a Ka-band LEO satellites to GEO satellite interference suppression technology, and the orbital evaluation of commercial-grade electronic components to achieve low-cost long-life.

The satellites were launched in November 2019 on a Kuaizhou-1A rocket from Jiuquan. One of the satellites was deployed into a circular 1050 × 1050 km, 86°, while the other went to an elliptical 1050 × 1425 km, 86° orbit.

Satellite COSPAR Date LS Launch Vehicle Remarks
KL-ALPHA A 2019-077A 2019-11-17 JSC Kuaizhou-1A with KL-Alpha B
KL-ALPHA B 2019-077B 2019-11-17 JSC Kuaizhou-1A with KL-Alpha A
