Skoltech B1, B2 []
Official name OBJECT L
Alternative name Skoltech-B2
Cospar ID 2022-096L
Norad ID 53380
Launch date 2022-08-09
Launch site TTMTR
Launch vehicle Soyuz-2-1b Fregat
Country/Organization Russia
Type application Technology
Operator Skoltech Space Systems Laboratory
RCS size SMALL
Decay date 2024-09-29
Shape Box
Mass (kg) 5
Height (m) 0.3
Width (m) 0.1
Depth (m) 0.1
Span (m^2) 0.3
Configuration CubeSat (3U)
Power Solar cells, batteries

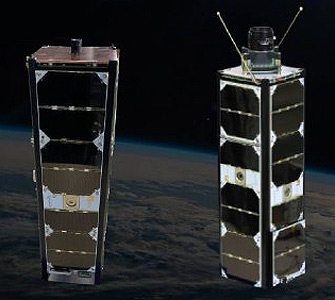

Skoltech B1 and B2 is a pair of Russian 3U CubeSats developed by Skoltech to demonstrate inter-satellite communication.

These satellites, developed by the Skoltech Space Systems Laboratory within the framework of the "SPACE-p" project supported by "FASIE" - Skoltech B1 and Skoltech B2, are planned to be launched as a multi-satellite mission.

There are 3 types of payloads placed on the devices:

  • inter-satellite communication module;
  • gamma detectors developed by NIIYAF MSU;
  • Visible range cameras for remote sensing.

The main task is to work out the technology of inter-satellite communication at a long distance, which will be used in the future when registering gamma-ray flashes with triangulation calculation of the direction to them. This will allow multiple spacecraft to quickly exchange flash data with each other, calculate where the gamma-ray particle stream came from, and transmit a receipt about this event to Earth so that scientists can have time to point telescopes in the direction of the flash.

Satellite COSPAR Date LS Launch Vehicle Remarks
OBJECT K 2022-096K 2022-08-09 TTMTR Soyuz-2-1b Fregat with Khayyam 1, CubeSX-HSE 2, CYCLOPS, Geoskan-Edelveis, ISOI, KAI 1, Kuzbass-300, MIET AIS, Monitor 1, Politekh-Univers 1, 2, ReshUCube, Siren, Skoltech B1, B2, UTMN, Vizard SS1
OBJECT L 2022-096L 2022-08-09 TTMTR Soyuz-2-1b Fregat with Khayyam 1, CubeSX-HSE 2, CYCLOPS, Geoskan-Edelveis, ISOI, KAI 1, Kuzbass-300, MIET AIS, Monitor 1, Politekh-Univers 1, 2, ReshUCube, Siren, Skoltech B1, B2, UTMN, Vizard SS1
