Jilin-1 Hongwai-A01 [Chang Guang Sat. Tech. Co.]
Official name OBJECT M
Alternative name Jilin-1 Hongwai A04
Cospar ID 2022-098M
Norad ID 53455
Launch date 2022-08-10
Launch site TSC
Launch vehicle CZ-6
Country/Organization China
Type application Earth observation
Operator Chang Guang Satellite Technology Co.
RCS size MEDIUM
Decay date 2024-09-02

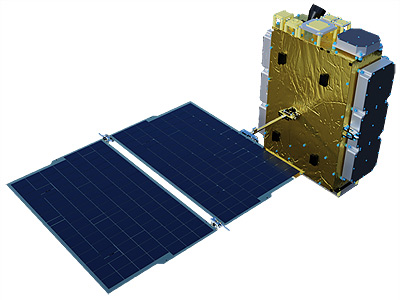

Shape Box + 2 Pan
Mass (kg) 42
Height (m) 1.5
Width (m) 1
Depth (m) 1
Span (m^2) 1.5
Contractors Chang Guang Satellite Technology Co.
Power Solar array, batteries

Jilin 1 satellites are a series of Chinese commercial remote sensing satellites for infra-red imaging within the Jilin-1 constellation designed and owned by the Chang Guang Satellite Technology Co.

The payload of this series of satellites is a long-wave infrared camera, which can detect the ocean, hotspot targets and the atmosphere, obtain the target?s radiometric information, and then analyze the target based on the atmosphere, land and ocean models. Realize the measurement of infrared radiation characteristics.

Some satellites carry a GNSS occultation detection payload for Yunyao Aerospace.

Satellite COSPAR Date LS Launch Vehicle Remarks
OBJECT L 2022-098L 2022-08-10 TSC CZ-6 with Jilin-1 Gaofen-03D-09, 03D-35, ..., 03D-43, Jilin-1 Hongwai-A01, ..., A06
OBJECT M 2022-098M 2022-08-10 TSC CZ-6 with Jilin-1 Gaofen-03D-09, 03D-35, ..., 03D-43, Jilin-1 Hongwai-A01, ..., A06
OBJECT N 2022-098N 2022-08-10 TSC CZ-6 with Jilin-1 Gaofen-03D-09, 03D-35, ..., 03D-43, Jilin-1 Hongwai-A01, ..., A06
OBJECT P 2022-098P 2022-08-10 TSC CZ-6 with Jilin-1 Gaofen-03D-09, 03D-35, ..., 03D-43, Jilin-1 Hongwai-A01, ..., A06
OBJECT Q 2022-098Q 2022-08-10 TSC CZ-6 with Jilin-1 Gaofen-03D-09, 03D-35, ..., 03D-43, Jilin-1 Hongwai-A01, ..., A06
OBJECT R 2022-098R 2022-08-10 TSC CZ-6 with Jilin-1 Gaofen-03D-09, 03D-35, ..., 03D-43, Jilin-1 Hongwai-A01, ..., A06
