Official name LINUSS1
Alternative name LINUSS 1
Cospar ID 2022-144G
Norad ID 55246
Launch date 2022-11-01
Launch site AFETR
Launch vehicle Falcon-Heavy (Block 5)(px)
Country/Organization USA
Type application Technology
Operator Lockheed Martin
RCS size UNKNOWN
Decay date ON ORBIT
Period (min) 1453.72
Inclination (deg) 4.43
Perigee (km) 36093
Apogee (km) 36169
Eccentricity 0.00105172843264786
Mean motion (revs. per day) 0.990562144016729
Semi-Major axis (km) 42509.135
Raan (deg) 66.6741
Arg of perigee (deg) 305.3258
Shape Box + 2 Pan
Mass (kg) 21.5
Height (m) 0.8
Width (m) 0.4
Depth (m) 0.4
Span (m^2) 1.4
Contractors Lockheed Martin (prime), Tyvak (bus)
Propulsion ?
Configuration CubeSat (12U)
Power Solar cells, batteries

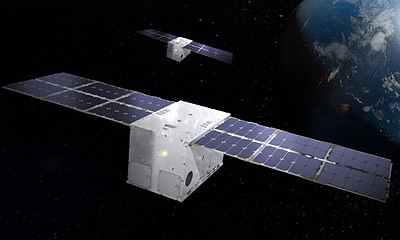

LINUSS (Lockheed Martin?s In-space Upgrade Satellite System) are two experimental 12U CubeSats by Lockheed Martin to demonstrate how small CubeSats can regularly upgrade satellite constellations to add timely new capabilities and extend spacecraft design lives.

LINUSS is a pair of LM-50 12U CubeSats designed to demonstrate how small satellites can serve an essential role in sustaining critical space architectures in any orbit. Developed using internal funding, LINUSS will be two of the most capable CubeSats in Geosynchronous Earth Orbit (GEO). Part of Lockheed Martin?s LM 50 family of smallsats, both LINUSS spacecraft are the collaborative integration of the company?s mission electro-optical payload deck with a next-generation 12U bus from Tyvak Nano-Satellite Systems, a Terran Orbital Company.

LINUSS? mission is to validate essential maneuvering capabilities for Lockheed Martin?s future space upgrade and servicing missions, as well as to showcase miniaturized Space Domain Awareness capabilities. LINUSS also will demonstrate mature new onboard high-performance processing by Innoflight; low-toxicity propulsion by VACCO; and inertial measurement units, machine vision, 3-D printed components and SmartSat? (transformational on-orbit software upgrade architecture) technologies by Lockheed Martin.

Satellite COSPAR Date LS Launch Vehicle Remarks
LINUSS1 2022-144G 2022-11-01 AFETR Falcon-Heavy (Block 5)(px) with Shepherd Demonstration, LDPE 2, Tetra 1, Alpine, LINUSS 2, USA 344, USA 399
LINUSS2 2022-144H 2022-11-01 AFETR Falcon-Heavy (Block 5)(px) with Shepherd Demonstration, LDPE 2, Tetra 1, Alpine, LINUSS 1, USA 344, USA 399
