Official name DALIAN-1 LIANLI
Alternative name Dalian-1 Lianli
Cospar ID 2023-063C
Norad ID 58816
Launch date 2023-05-10
Launch site WSC
Launch vehicle CZ-7
Country/Organization China
Type application Earth observation
Operator Dalian University
RCS size MEDIUM
Decay date 2024-04-23
Shape Box
Mass (kg) 17
Height (m) 0.3
Width (m) 0.2
Depth (m) 0.2
Span (m^2) 1
Contractors Dalian University
Propulsion HAN thruster
Configuration CubeSat (12U)
Power Solar cells, batteries

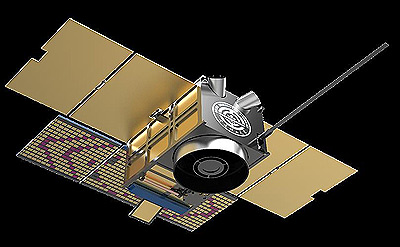

The Dalian-1 Lianli is a 12U CubeSat for earth observation developed by the Dalian university.

It carries high-resolution hyperspectral camera and a HAN-Based monopropellant propulsion system.

It was launched in May 2023 from Hainan Launch Center onboard of Tianzhou 6 using a CZ-7 launch vehicle into a 400 km circular 42.9° inclination orbit. It was deployed from Tianzhou 6 after leaving the CSS.

Satellite COSPAR Date LS Launch Vehicle Remarks
DALIAN-1 LIANLI 2023-063C 2023-05-10 WSC CZ-7 with Tianzhou 6
